Air Care ACS130 Bathroom Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Air Care ACS130 Bathroom Exhaust Fan Parts

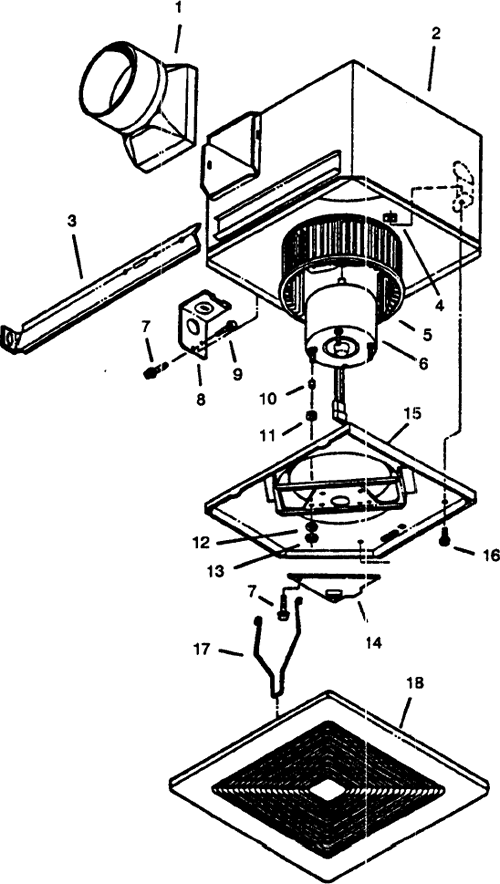

Air Care ACS130 Bathroom Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97009281 Grille - Includes Grille Springs - 11 1/2 X 11/12 $15.75
 S99140160 Grille Spring - ACS90 & ACS130 $1.55
 S99110736 Light Lens $11.74
 S99770118 Lamp Socket (Replaced S99770029) $4.64
 S97009800 Complete Blower Assembly - ACS120L & ACS130 $167.47
 S99080274 Motor - ACS120L & ACS130 $76.75
 S99110735 Blower Wheel $8.24
 S97014513 Motor Mounting Bracket $7.98
 S97011270 Scroll $31.54
 S99100412 Motor Mounting Rubber $4.73
 S97009275 Housing $31.14
 S98003036 Housing Mounting Bracket $1.89
 S97014514 Wire Cover - ACS90 & ACS130 $1.84
 S97009287 Receptacle for Motor $2.84
 S97003932 Damper/Duct Connector $6.28
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
