BEST CC34E6SB Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST CC34E6SB Range Hood Parts

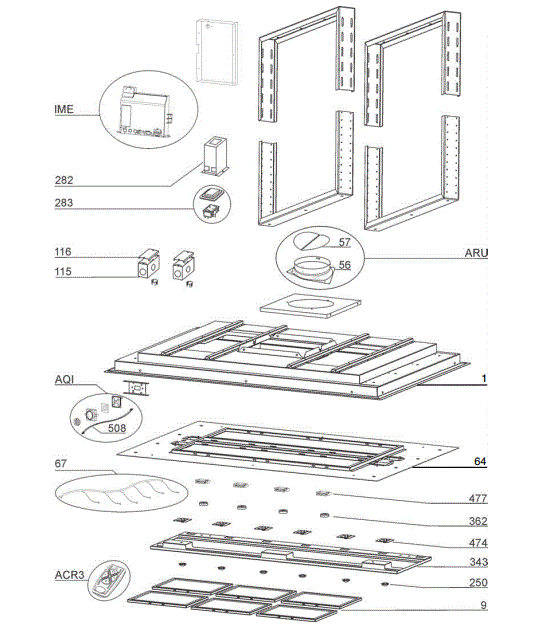

BEST CC34E6SB Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087804 Grease Filter $20.57
64SB03115251 Bottom Bracket $224.57
115SBE3350233 Feeder Cable Connection Box $25.85
116SBE3351530 Feeder Cable Connection Box Cover
This product has been discontinued
250SB02011389 Ring Nut $15.01
343SB08093078 Closure Panel $242.64
362SB02011421 Display Visor Spring $19.08
477SB02011376 Closing $49.03
ARUSB08092501 Connection Air Outlet (Includes Key No. 56, 57) $40.37
ACR3SB08999186 Remote Control
This product has been discontinued
0HCK44 Cord Kit with 6' cord and plug $16.57
 SB003102866 Frame $388.58
 SB02011341 Damper Flat $5.83
 SB08093079 Bottom Bracket $0.00
 SB004203477 Wires $15.82
 SB08092997 Upper Telescopic Skeleton $37.62
 SBE3351010 Bottom Telescopic Skeleton $0.00
 SBE3405320 Main Switch Support $85.18
 SB02300907 Main Switch $16.63
 SB080811027 Door Magnets $0.00
 SB08089101 Led Lamp $47.84
 SB02301035 Flat Cable Control $0.00
 SB080810962 Fitting Set $32.08
 SB06142981 Electrical Installation Assembly $351.56
 SB06102976 Switch Box Assembly $106.74
 SB08092501 Connection Air Outlet $40.37
