BEST CC34IQSB Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST CC34IQSB Range Hood Parts

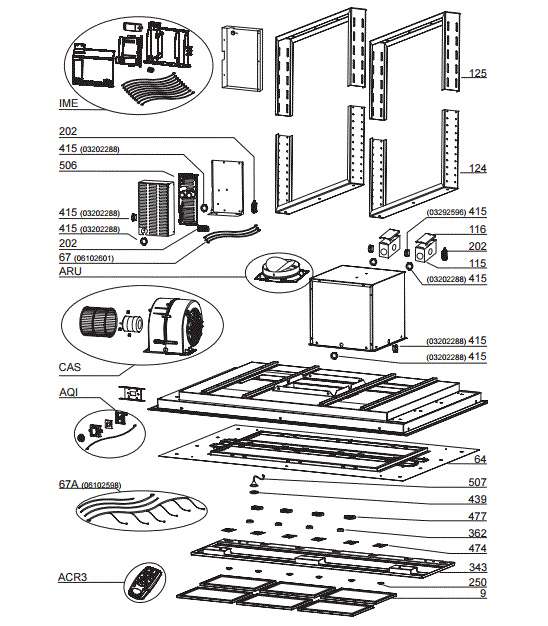

BEST CC34IQSB Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
CASSB6002259 Blower Assembly $362.26
506S97019431 Bldc Driver $328.50
67SB6102601 Wires $44.08
415SB3202288 Bushing $0.62
IMESB6145222 Electrical Installation Assembly $258.88
67ASB6102598 Wires $37.32
115SBE3350233 Feeder Cable Connection Box $25.85
415SB3292596 Bushing $0.60
116SBE3351530 Feeder Cable Connection Box Cover
This product has been discontinued
125SB8092797 Upper Telescopic Skeleton $78.76
124SB08092796 Bottom Telescopic Skeleton $113.94
64SB3115251 Bottom Bracket $108.66
507S6102584 Calibration Button Assembly $39.68
439S2320034 Grommet $4.50
474SB08089101 Led Light $47.84
250SB2011389 Ring Nut $8.36
AQISB6102585 Switch Box Assembly $83.02
343SB8093078 Closure Panel $167.82
477SB2011376 Hinge $22.52
362SB2011421 Display Visor Spring $9.54
9SB08087804 Grease Filter $20.57
ARUSB08092501 Connection Air Outlet Set $40.37
ACR3SB8999186 Remote Control $108.58
 SB80810994 Hardware $5.24
0HCK44 Cord Kit with 6' cord and plug $16.57
