BEST IM33I45SP Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IM33I45SP Range Hood Parts

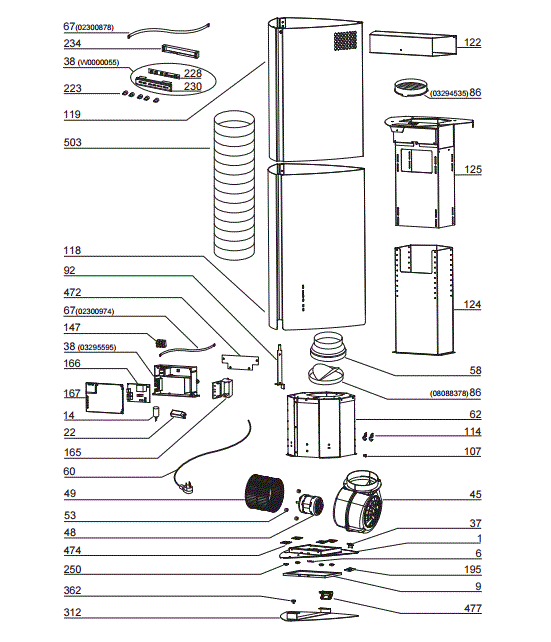

BEST IM33I45SP Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
6SB02000191 Spring $5.44
14SB02300233 Condenser $14.44
22SB02300998 Feeder $199.98
37SB02300804 Knob $17.21
45SBW0000065 Blower Wheel Housing $71.78
48SB02310260 Motor (Clockwise) see sb0600280
This product has been discontinued
49SB03295071 Fan (Clockwise) $31.14
53SB03204177 Rubber Washer
This product has been discontinued
58SB03295018 Outlet Reduction $17.53
60SB02300249 Feeder Cable $18.76
67SB02300878 Wires $7.74
67SB02300974 Wires $11.59
86SB08088378 Outlet Flange $10.26
107SB03202287 Cable Stop $3.64
114SB03290499 Runner Wires $9.49
147SBR2300132 Junction Clamp $13.18
165SB03295008 Electrical Box $17.69
250SB02011389 Ring Nut $15.01
474SB02300431 Halogen Lamp OBSOLETE (use SB08089101)
This product has been discontinued
503SB02011452 Expandable Duct $31.59
 SB06002157 Blower Assembly (Includes Key No.45 ,48 ,49, 53) $220.84
474SB08089101 LED Light $47.84
0HCK44 Cord Kit with 6' cord and plug $16.57
