BEST IPB9IQT48SB Island Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IPB9IQT48SB Island Range Hood Parts

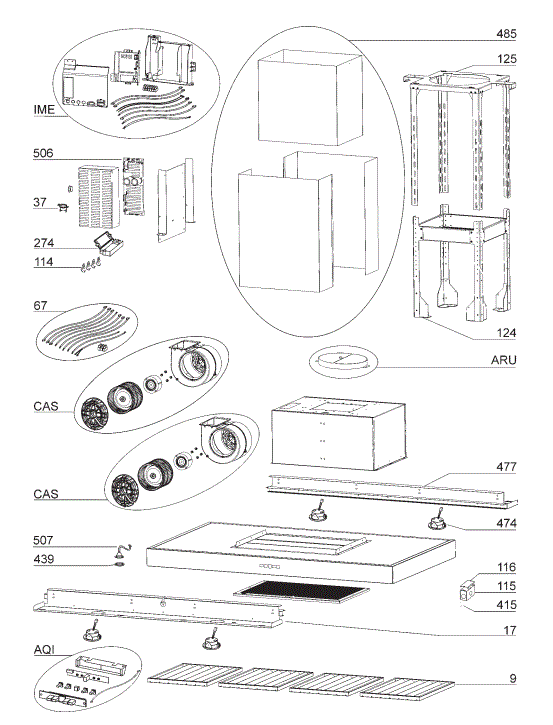

BEST IPB9IQT48SB Island Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087951 Grease Filters $114.86
17SBE3351928 Light Diffuser Support $73.37
37SB02300804 Heat Sentry $17.21
67SB06102611 Wires Assembly $110.29
114SB03292499 Runner Wires $3.38
115SBE3350233 Wiring Box $25.85
124SB08093422 Telescopic Structure Bottom $165.80
202SB03292063 Wire Clamp $3.53
274SB03295035 Fuse Box $8.80
415SB03292596 Fairlead $0.51
439SB02320034 Grommet $5.22
474SB02300918 Lamp Socket $47.29
477SBE3351945 Light Diffuser Support Back $72.76
485SB08016373 Decorative Flue Assembly $646.63
506S97019434 Bldc Driver $394.43
507SB06102584 Calibration Button Assembly $46.01
AQISB06102596 Switch Box Assembly $74.20
ARUSBE3405192 Duct Connector Assembly 10” $122.69
IMESB06145225 Electrical Installation Assembly $281.34
CASSB06002259 Blower Assembly $420.07
 SB080811011 Fitting Set (Includes Key No. Aru) $99.49
1SB02300890 Light Bulb T4-25WATT 120V G9BASE $14.11
0HCK44 Cord Kit with 6' cord and plug $16.57
