BEST U10236SBE Range Hood Parts

Listed below are the parts available for this model.

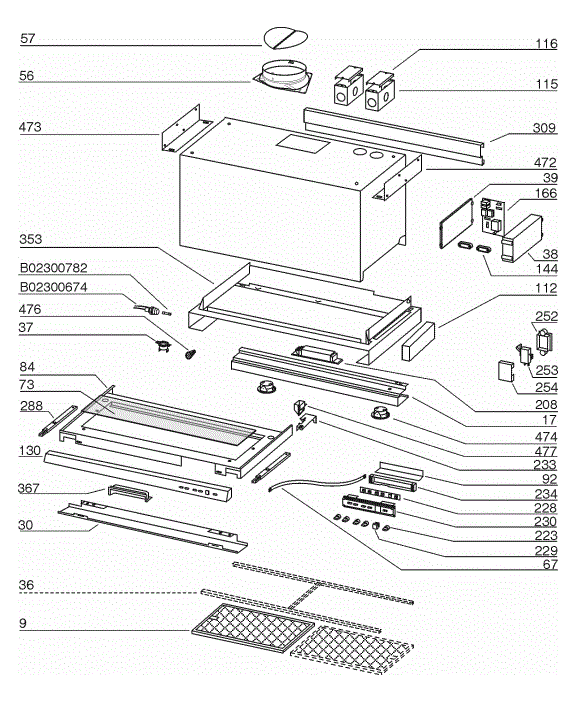

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST U10236SBE Range Hood Parts
BEST U10236SBE Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087077 Grease Filter (36" Model sold each 2 needed) 6x 15 15/16
This product has been discontinued
9SB08087016 Grease Filter (30" Model) $72.00
14SB02300233 Motor Capacitor $21.60
17SBE3347241 Halogen Support (36" Model) $87.86
17SBE3347372 Halogen Support (30" Model) $75.44
30SBE3347340 Control Cover (36" Model) $36.32
30SBE3347370 Controls Cover (30" Model) $29.72
36SBE3403716 Filter Frame (36" Model) $102.60
37SB02300804 Heat Sentry $39.60
38SB03292357 Electrical Box $45.00
39SB03294033 Electrical Box Cover $33.30
73SB02005069 Glass Visor (36" Model) $41.40
73SB02005070 Glass Visor (30" Model) $18.00
112SB03294746 Wiring Access Cover $6.52
115SBE3334250 Wiring Box $18.21
130SB003101208 Front Panel (36" Model) $121.09
130SB003101220 Front Panel (30" Model) $130.50
165SB03295008 Motor Capacitor Box $20.70
166SB08086700 Control Board $163.80
208sb02300739 Transformer $153.90
223SB03294171 Switch Button $18.00
233SB03294740 Closure $8.75
252SB03292349 Limit Switch Box $18.00
253SB02300620 Limit Switch $32.40
254SB03292350 Limit Switch Box Cover $3.60
288SB020111650 Drawer Slide $21.28
353SBE3403713 Drawer(36" Model) $204.86
353SBE3403751 Drawer (30" Model) $193.25
367SB03294747 Handle $3.53
472SBE3347252 Right Bracket $27.00
473SBE3347251 Left Bracket $35.10
474SB02300733 Lamp Housing
This product has been discontinued
476SB03292203 Spacer Panel $1.73
477SB03294785 Upper Closure $3.96
998SB080810599 Hardware Package $45.61
ARUSB08092501 Damper/Duct Connector Assembly (56,57)
This product has been discontinued
 SB06108277 Switch Box Assembly: Includes Key Nos. 234, 228, 223, 229, 67, 230, 92 $108.90
 SB06002066 Blower Assembly: Includes Key Nos. 68, 69, 48, 49, 53, 42
This product has been discontinued
 SB02300782 Fuse $18.00
 SB02300674 Fuse Holder
This product has been discontinued
0HCK44 Cord Kit with 6' cord and plug $42.30
