Broan 12000 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 12000 Range Hood Parts

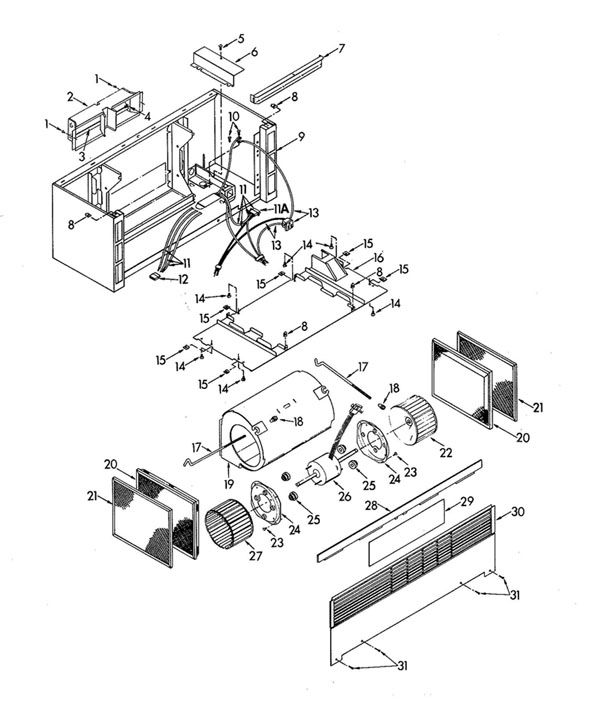

Broan 12000 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97006940 Ballast Transformer $67.68
  S97006733 Heat Sentry Thermostat
This product has been discontinued

  S99270553 Fluorescent Starters FS-2 $27.26
  S99271261 Fluorescent Starter Base
This product has been discontinued

  S99270550 Fluorescent Lamp Holder, 2-Required F20T12/24" Fluorescent Tube $27.26
  S97007352 Parts Bag For 123135
This product has been discontinued

  S98005860 Lamp Holder Retainer - 2 Required $27.26
  S97006736 Fluorescent Light Wiring Harness $18.00
  S99150478 Screw Used To Attach Motor Retaining Ring / Cup To Blower Scroll Housing - #8-18 X 3/8" - 8 Required $27.26
  S97006738 Blower Housing Wiring Harness $6.66
  S99270556 3-Prong Outlet With Wires $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 S99100379 Damper Bushing Only - 2 Required $18.00
2 S97006078 Damper Assembly $23.53
3 S98005221 Damper Flap Only $27.26
4 S99170245 Screw Used To Attach Damper/Duct Connector To Hood - #8 X 3/8" - 2 Required $18.00
6 S98005852 Control Board Access Cover $3.62
11 S97006721 Fan And Light Switch Control Board
This product has been discontinued

11 S97006737 Side Box Wiring Harness That Plugs Into Fan/Light Switch Control Board $28.20
12 S97011802 Knob - Fan/Light On /Off Switch - 2 Required
This product has been discontinued

13 S99110535 Slide Knob For Speed Control $27.26
15 S99150489 Screw Used To Attach Fan/Light Switch Control Board To Hood - #6 X 1/2" - 2 Required $18.00
16 S98006261 Mounting Plate $12.33
16 S95000341 Top Housing Trim
This product has been discontinued

17 S99420464 Blower Mounting Rod $27.26
18 S99260476 Mounting Rod Nut $27.26
19 S97007314 Blower Scroll Housing Only - Does Not Include Motor Or Blower Wheels $112.80
20 S97007807 Non-Ducted Filter Kit -Contains 2 Filters - 9" X 10-1/8"
This product has been discontinued

22 S99020138 Blower Wheel CW $33.84
24 S98005212 Motor Retaining Ring $27.26
25 S99100491 Rubber Motor Mounting $27.26
26 S97010736 Motor $115.62
26 S97010327 Complete Motor Assembly $289.52
27 S99020139 Blower Wheel CCW $33.84
28 S98005817 Blower Support Brace
This product has been discontinued

29 S99110538 Ductfree Grille Baffle Plate $9.27
29 S97011804 Plastic Switch Panel Trim (Black)
This product has been discontinued

30 S95000340 Blower Cover Grille $188.00
31 S99150488 Screw Used To Attach Cover To Hood - #8 X 1/4" - 4 Required $27.26
  S99270518 3 CONDUCTOR IN-LINE RECEPTACLE $3.74
