Broan 153602 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 153602 Range Hood Parts

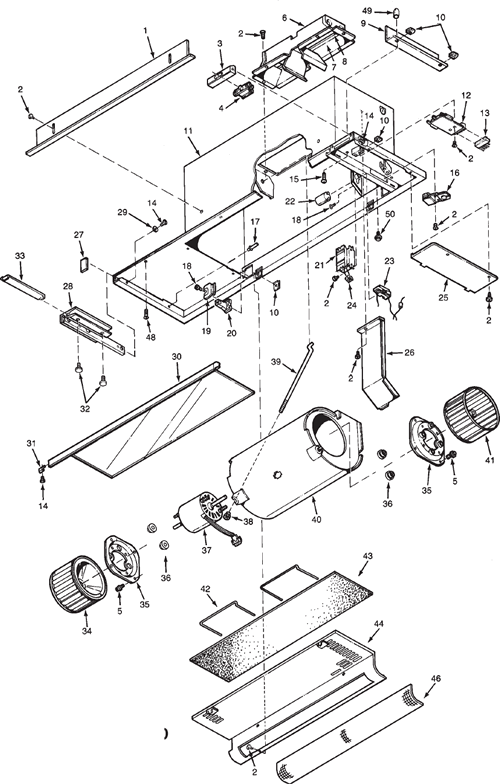

Broan 153602 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99090677 FAN CONTROLTRIM ONLY - BLACK $91.76
 S99090697 FAN CONTROL TRIM ONLY - WHITE
This product has been discontinued
 S99091018 FAN CONTROL TRIM ONLY - BISCUIT $31.61
 S99091030 FAN CONTROL TRIM ONLY $51.19
 S98006937 ACCESS COVER FOR SWITCH - BLACK $55.80
 S99150526 SCREW USED TO ATTACH ACCESS COVER - BLACK - #8-18 x 3/8" $18.00
 S98007164 ACCESS COVER FOR SWITCH - WHITE
This product has been discontinued
 S98009729 ACCESS COVER FOR SWITCH - BISCUIT $13.19
 S98010173 ACCESS COVER FOR SWITCH - STAINLESS $57.60
 S99150478 SCREW USED TO ATTACH ACCESS COVER - WHITE/BISCUIT/STAINLESS- #8-18 x 3/8" $18.00
 S97007314 BLOWER SCROLL HOUSING ONLY - DOES NOT INCLUDE MOTOR OR BLOWER WHEEL $135.00
 S99100491 RUBBER MOTOR MOUNT - 4 REQUIRED $18.00
 S99170245 SCREW USED TO ATTACH MOTOR CUP TO SCROLL HOUSING - #8-18 x 3/8" - 8 REQ. $18.00
 S99110683 DRAWER END CAP - BLACK $2.11
 S99110699 DRAWER END CAP - WHITE $2.63
 S99111195 DRAWER END CAP - BISCUIT $4.21
 S99100463 DRAWER STOP - 2 REQUIRED $0.88
 S97016556 LEFT HAND DRAWER BRACKET ASSEMBLY- STAINLESS - INCLUDES THUMB SCREW & DRAWER CLAMP $156.60
 S97016555 RIGHT HAND DRAWER BRACKET ASSEMBLY - STAINLESS - INCLUDES THUMB SCREW & DRAWER CLAMP $156.60
 S98006938 WIRE BOX COVER $18.00
 S97008618 FAN WIRE HARNESS $18.77
 S98005860 LAMP HOLDER BRACKET- 2 REQUIRED $18.00
 S99160319 SCREW USED TO ATTACH LAMP HOLDER BRACKET - #6-32 x 3/8" - 4 REQUIRED
This product has been discontinued
 S97015775 LIGHT WIRE HARNESS $18.86
 S98006940 FRONT TRIM - BLACK - 1530-A, 1536-A $6.41
 S98007168 FRONT TRIM - WHITE - 1530-A, 1536-A $16.88
 S98010015 FRONT TRIM- 1530-B, 1536-B - ALL FINISHES $9.79
 S97011138 BOTTOM FILTER PANEL $212.40
 S97011139 BOTTOM FILTER PANEL- WHITE $214.20
 S97015726 BOTTOM FILTER PANEL - BISCUIT $73.78
 S97016557 BOTTOM FILTER PANEL- SILVER (SS) $203.40
 S97015950 RIGHT HAND MOUNTING BRACKET - ALL FINISHES - 1530-B, 1536-B $9.27
 S97015949 LEFT HAND MOUNTING BRACKET - ALL FINISHES- 1530-B, 1536-B $9.27
 S98005221 DAMPER FLAP ONLY $18.00
 S99100379 DAMPER BUSHING ONLY $18.00
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
37S97010327 COMPLETE BLOWER ASSY 15000 SERIES (KEYS 34-38,40,41) $307.80
0HCK44 Cord Kit with 6' cord and plug $42.30
 S97008631 PARTS BAG FOR 30 & 36" BLACK & BRUSHED ALUMINUM UNIT $11.05
 S97008980 PARTS BAG FOR 30 & 36" WHITE UNIT $16.27
 S97015121 PARTS BAG FOR 30 & 36" BISCUIT UNIT $6.77
4S99360133 KNOB (BLACK) $4.79
4S99360140 KNOB (WHITE) $2.84
4S99360240 KNOB (BISCUIT) $11.84
4S99360249 KNOB (BLACK) $4.93
6S97006078 DAMPER ASSEMBLY $23.53
12S97008578 FAN VARIABLE SPEED SWITCH $88.20
16S97009433 ON/OFF FAN AND LIGHT SWITCH WITH THERMOSTAT - 1536-C $45.90
20S99270550 FLUORESCENT LAMP HOLDER/ SOCKET* $18.00
21S99270651 Ballast Transformer-obsoleted see 99271670
This product has been discontinued
13S99271670 Ballast $95.40
22S99270553 FLUORESCENT STARTER FS-2 $18.00
28S97008642 RIGHT DRAWER BRACKET - 1536-A (BLACK) $46.10
28S97008643 LEFT DRAWER BRACKET - 1530-A, 1536-A (BLACK) $45.80
28S97008970 RIGHT DRAWER BRACKET- 1536-B (BLACK) $35.72
28S97008971 LEFT DRAWER BRACKET- 1536-B,C (BLACK) $156.60
28S97008978 RIGHT DRAWER BRACKET - 1536-B (WHITE) $47.10
28S97008979 LEFT DRAWER BRACKET - 1536-B,C (WHITE) $172.80
28S97009435 RIGHT DRAWER BRACKET - 1536-C (WHITE) $172.80
28S97009436 RIGHT DRAWER BRACKET- 1536-C (BLACK) $156.60
28S97015119 RIGHT DRAWER BRACKET- 1536-C (BISCUIT) $63.34
28S97015120 LEFT DRAWER BRACKET- 1536-C (BISCUIT) $63.34
30S97008930 GLASS DRAWER ASSEMBLY WITH HANDLE - 1536 (BLACK) $274.84
30S97009055 GLASS DRAWER ASSEMBLY WITH HANDLE - 1536 (WHITE)
This product has been discontinued
30S97015471 GLASS DRAWER ASSEMBLY WITH HANDLE - 1536 (BISCUIT) $275.02
32S99420602 DRAWER THUMB SCREW (BLACK) - 4 REQ. $18.00
32S99420603 DRAWER THUMB SCREW (WHITE) - 4 REQ. $10.66
32S99420630 DRAWER THUMB SCREW (BISCUIT) - 4 Req. $5.90
33S97008777 DRAWER CLAMP - 1536-A $10.38
33S98007155 DRAWER CLAMP- 1536-B,C $3.89
34S99020139 BLOWER WHEEL CCW $32.40
35S98005212 MOTOR RETAINING RING 2-REQUIRED $18.00
36S97010902 RUBBER MOTOR MOUNT - CONTAINS 2 $18.00
37S97010736 MOTOR $138.60
38S99260476 MOUNTING ROD NUT $5.51
39S99420464 BLOWER MOUNTING ROD NUT $18.00
41S99020138 BLOWER WHEEL CW $32.40
42S99140156 FILTER SPRING (2 - REQUIRED) $18.00
43S99010175 FOAM FILTER 6¼” x 23-5/8" $18.00
46S99050018 GLASS LIGHT LENS $45.90
