Broan 403604 Stainless Steel Range Hood 36" Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 403604 Stainless Steel Range Hood 36" Parts

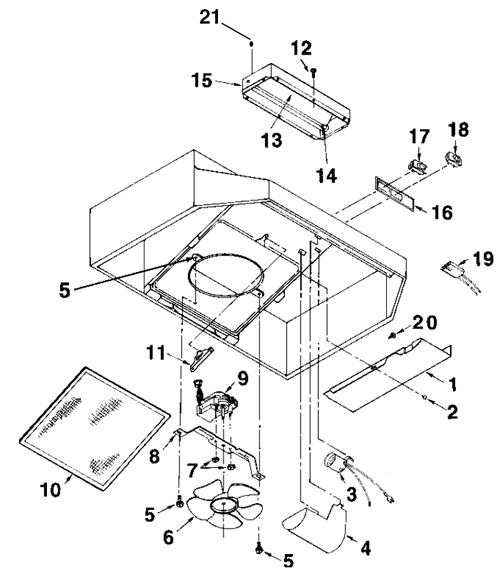

Broan 403604 Stainless Steel Range Hood 36" Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  F403604 Complete brand new range hood $185.80
0 HCK44 Cord Kit with 6' cord and plug $42.30
  S97005543 Parts Bag (Contains 4 Wood Screws # 10-16 X 7/8") $27.26
  S99420040 Hairpin Clip $27.26
1 S98006621 Outlet Box Cover - 40000-B Thru H $27.26
3 S97010966 Light Socket $27.26
4 S99110437 Light Lens $27.26
6 S06118-00 Blade, all except 40000-H (for H purchase fan assy 97012248) $27.26
6 S99020272 Fan Blade ccw for splined motor $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
8 S98005568 Motor Mounting Bracket $27.26
9 S99080218 Motor, all except 40000-H (for H purchase fan assy 97012248) $42.07
  S97012248 Complete Fan Assembly B-H (Includes Key Nos. 6,7,8 & 9) $80.84
10 S97006931 Aluminum Filter 8¾” x 10½” $27.26
11 S99140135 Aluminum Filter Clip - 40000 $27.26
11 S99420472 Plastic Filter Retainer - 40000-B Thru H $27.26
15 S97005544 Damper Assembly 3-1/4" X 10" $33.84
16 S97010709 Nameplate - Black - 40000-D Thru H $27.26
16 S99090881 Nameplate - White $4.73
17 S99030135 Fan Switch - Black - 40000, 40000-B $8.78
17 S99030315 Motor Switch Black (obsolete replaced by 97016970)
This product has been discontinued

  S97011093 Obsolete Fan & Light Switch Set Black replaced by 97016970 $0.00
18 S99030134 Light Switch - Black - 40000, 40000-B $27.26
18 S99030310 Light Switch - Black - 40000-D Thru H (obs rpld by 97016970)
This product has been discontinued

18 S99030311 Light Switch - White *(replaced by 97016971)
This product has been discontinued

  S97015728 Fan & Light Switch Kit - White, 43000-B (obs rpld by 97016971)
This product has been discontinued

17 S99030316 Motor Switch White (Obsolete, replace w 97016971)
This product has been discontinued
