Broan 629004 Mirage Chimney Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

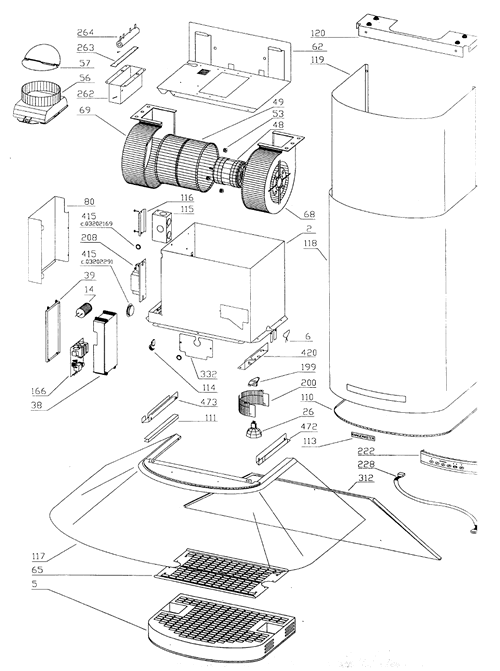

Broan 629004 Mirage Chimney Range Hood Parts
Broan 629004 Mirage Chimney Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SB020002340 Filter Springs
This product has been discontinued
 S99091031 Logo Sticker - Will Read "Broan Elite " $6.98
 SB08092518 Metal Damper Duct Connector - For Units Built After 09/07 $41.40
0HCK44 Cord Kit with 6' cord and plug $42.30
 S02300654 Resistor 629004-A
This product has been discontinued
 SB02300782 Fuse 4-Amp. 5Mm X 20Mm $18.00
 SB06001769 Complete Blower Assembly 629004-A (Includes Key Nos.48,49,53,68,69,42)
This product has been discontinued
 SB06002019 Complete Blower Assembly 629004-B (Includes Key Nos.48,49,53,68,69,42)
This product has been discontinued
 SB080810285 Parts Bag, Screwa & Lower Mounting Bracket
This product has been discontinued
5SBE3401653 Fitler Assembly-1 Required $336.29
6SB020002340 Grille Spring F/Bois/Bok
This product has been discontinued
14SB02300233 Capacitor For Motor 629004-B $21.60
14SB06106272 Capacitor For Motor 629004-A
This product has been discontinued
26SB02300774 Halogen Bulb 2-Required (Mr16, 12V, 20Watt) $22.93
37SB02300787 Heat Sentry 629004-B $46.24
48SB02310184 Motor629004-B
This product has been discontinued
48SB082300521 Motor 629004-A $269.59
49SB03295071 Blower Wheel 629004-A $52.20
49SB03295076 Blower Wheel 629004-B $51.30
56SB080810111 Damper Flaps & Duct Connector
This product has been discontinued
110SB03202430 Flue Gasket $5.67
111SB03204094 Glass Gasket 2 Required $26.48
113SB03202433 Range Master Logo (Replaced By V03493) $4.88
117SB008087279 Hand Blown Glass Shroud $1,753.02
118SB003181863 Lower Flue $878.85
119SBE3400561 Upper Flue $446.36
120SBE3334555 Upper Flue Mounting Bracket $35.42
166SB08086697 Control Board 629004-B
This product has been discontinued
199SB02300727 Lamp Socket $31.36
200SB03292296 Lamp Shroud (1left) $15.00
208SB02300717 Transformer 629004-A $39.20
208sb02300739 Transformer 629004-B $153.90
222SB08088323 Switch Assembly 629004-A, B $380.45
