Broan 90000 9 Inch Electronic Hood 360 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 90000 9 Inch Electronic Hood 360 Cfm Parts

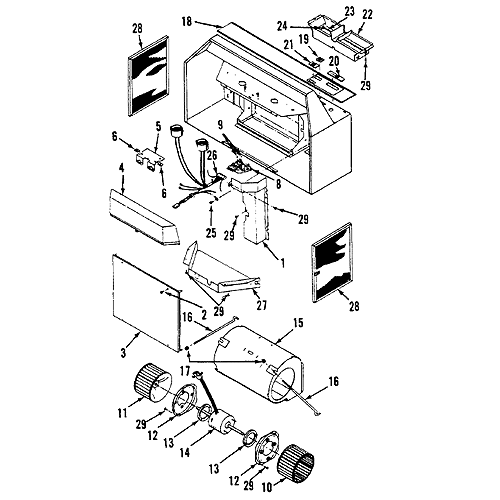

Broan 90000 9 Inch Electronic Hood 360 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97005543 Parts Bag - Includes Mounting Hardware $27.26
5 S99110620 Black Louver Cover
This product has been discontinued

5 S99110847 White Louver Cover $35.72
7 S97014421 TOUCH PAD-BLACK
This product has been discontinued

7 S97014423 TOUCH PAD-ALMOND
This product has been discontinued

8 S97010827 CONTRL PNL ASM BLACK 30N
This product has been discontinued

8 S97010828 CONTROL PNL ASM BLACK 36N
This product has been discontinued

8 S97010829 CONTROL PNL ASM BLACK 42N $147.87
8 S97010830 CONTROL PNL ASM WHITE 30N
This product has been discontinued

8 S97010831 CONTROL PNL ASM WHITE 36N
This product has been discontinued

8 S97010832 CONTROL PNL ASM WHITE 42N
This product has been discontinued

14 S97010327 Complete Blower Assembly (Includes Key Nos. 11 thru 15, 18 & 19) $289.52
14 S97010736 Motor $115.62
11 S99270754 LIGHT SOCKET (OBS RPL BY 97009091) $0.00
12 S97009091 WIRE HARN DLX E-C HOOD $16.54
15 S97010892 CONTROL BOARD & PAD ASSY BLACK
This product has been discontinued

15 S97010893 CONTROL BOARD & PAD ASSY WHITE
This product has been discontinued

19 S99110605 Light Lens $33.84
20 S98006546 LIGHT SOCKET COVER DLX PT $33.84
21 S97007631 Bottom Cover - Silver (For Stainless Hood)
This product has been discontinued

21 S97007895 Bottom Cover - White
This product has been discontinued

21 S97007899 Bottom Cover - Almond
This product has been discontinued

21. S97009517 Bottom Cover-Black
This product has been discontinued

23 S99260476 Mounting Rod Nut $27.26
24 S99420464 Blower Mounting Rod $27.26
26 S99020138 Blower Wheel CW $33.84
28 S97007894 Aluminum Filter Kit (Contains 2 Filters) 9 7/8 X 11 5/8 X 3/8 $33.84
28 S97007662 Ductfree Filter Kit - (Contains 2 Filters)10x11-3/4 $84.60
27 S98005212 Motor Retaining Ring 2-Required $27.26
29 S97006078 Damper Assembly $23.53
28 S97010902 Rubber Motor Mount - Contains 2 $27.26
30 S99020139 Blower Wheel CCW $33.84
