Broan F403604 36", Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

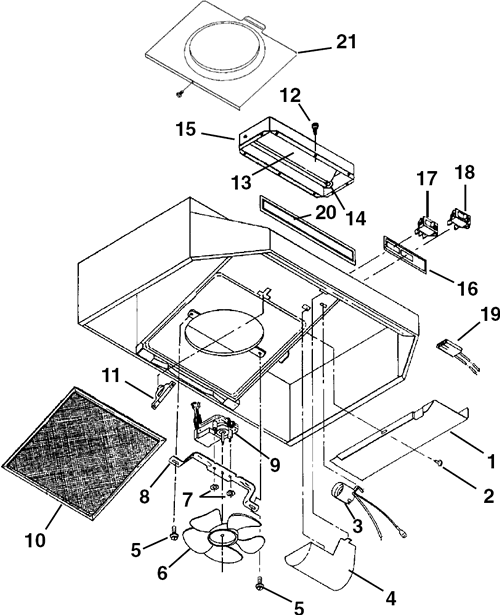

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan F403604 36", Stainless Steel Range Hood Parts
Broan F403604 36", Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
*F403604 Complete New Unit $185.80
0HCK44 Cord Kit with 6' cord and plug $42.30
 S97010792 7" Round Damper (Optional, not included with hood) $41.40
1S98006621 Wiring Box Cover $18.00
3S97010966 Light Socket $19.80
4S99110437 Light Lens $18.00
6S99020272 Fan Blade $18.00
8S98005568 Motor Mounting Bracket $18.00
9S97012248 Motor, Blade & Bracket Assy. $85.50
10S97006931 Aluminum Filter 8¾” x 10½” $18.00
10S97007696 Non-Ducted Filter 8¾” x 10½” $27.00
11S99420472 Plastic Filter Clip/Retainer $18.00
19S97016970 BLACK- LIGHT SWITCH-2prong $45.00
17S99030315 Motor Switch Black (obsolete replaced by 97016970)
This product has been discontinued

18S99030310 OBSOLETE Light Switch - Black, rpl by 97016970
This product has been discontinued

15S97005544 Damper Assembly 3-1/4" X 10" $33.30
16S97010709 Nameplate Black $18.00
18S99030311 OBSOLETE Light Switch - White replaced by 97016971 $0.00
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
19S97005678 Female Receptacle That Motor Plugs Into With Wire Leads $18.00
20S99091022 Plastic Louver Cover Black $18.00
21SR680508 7" Round Duct Plate $39.60
