Broan HRV90HT Versatile & Compact - Top Ports Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan HRV90HT Versatile & Compact - Top Ports Parts

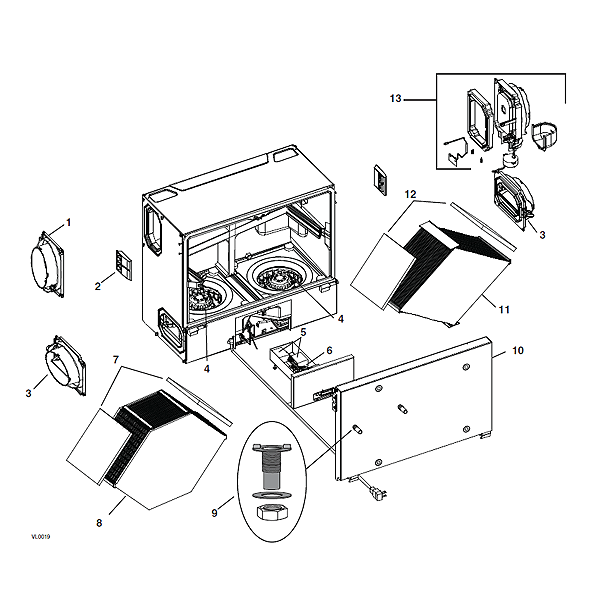

Broan HRV90HT Versatile & Compact - Top Ports Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
  SV16032 HRV Foam Filter, 2 Required $84.60
  SV18301 Blower Assembly - Includes Motor, Blower Wheel, & 5uF Capacitor - 2 Required $423.00
  SV61127 Capacitor - 18 uF $70.24
  SV16038 Electronic Circuit Board $226.54
  SV18302 Transformer $194.58
  SV16096 Door Assembly $213.38
  SV16036 Door Hinge - 2 Required
This product has been discontinued

  SV16040 Oval Port - 5" Round $78.96
  SV16041 Oval Port with Balance Damper - 2 Required $87.42
  SV16029 Motorized Damper Port Assembly $238.76
  SV03203 Drain Connector Kit $42.30
  SV16416 Green Connector / Terminal Block $67.68
  SV06011 Hardware Kit $42.30
  SV14790 Exterior Air Duo Hood $96.82
  SV04318 Back Plate for Air Duo Hood $53.58
  SV14786 Tandem Transition Pipe $290.14
