Broan QS342SS Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QS342SS Stainless Steel Range Hood Parts

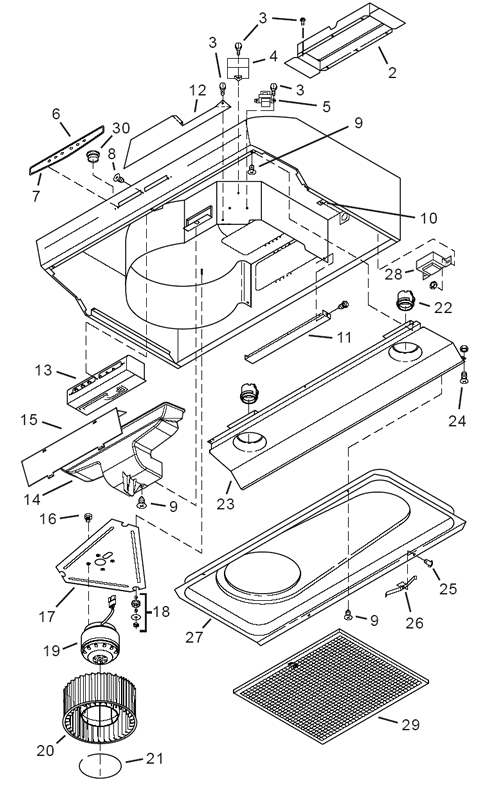

Broan QS342SS Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.67
 SV02544-LED 8W, 3000K, 40 ° foco LED PAR20, 90 CRI (Replaced SV02544 Halogen) $26.80
0HCK44 Cord Kit with 6' cord and plug $30.08
 S97010792 7" Round Damper (Optional, not included with hood) $25.38
1SR680508 7" Round Duct Plate $24.23
 SV02544 HALOGEN PAR20- 39WATT $30.17
2SR740013 Damper/Duct Connector 3¼” x 10" with Screws $25.29
4SR334126 Motor Capacitor - QS3-B,C $31.68
4SR334156 Motor Capacitor - QS3 $34.61
5SR501031 Isolation Transformer (24 Volt) - QS3-A,B,C $24.66
6SR627507 Nameplate, Black - QS3 $16.47
7SR169013 Plastic N.P. Back Panel, Black - QS3 $27.34
9SR602058 Screw for Plastic Air Chute-Contains-3, QS3-A $3.28
*BP87Q 7" foam quiet damper/ hood $11.16
9SR602534 Screws for Attaching Plastic Air Chute-Contains-2, QS3-B,C $4.12
11SR680505 Scroll Cover, Outlet $19.53
12SR680507 Scroll Cover, Front $22.37
13SR111653 Switch Control Board Assembly with Nameplate and Screws - QS3 $209.66
14SR401573 Black Plastic Air Chute QS3-A, $28.26
14SR401647 Black Plastic Air Chute & Baffle Assembly QS3-B,C $19.21
16SR601536 Motor Screw, Metrix M4 x 6mm-Contains 4 $7.60
17SR651973 Motor Plate - Includes Mounting Screws, Washers, Isolators, Nuts, etc. $32.76
18SR169009 Motor Plate Mounting Kit (3 of each part) $10.37
19SR520133 Motor & screws for mounting - QS3-B, $145.13
20SR531068 Blower Wheel - includes Retaining Ring $40.34
21SR607215 Retaining Ring for Wheel $4.77
22SR111630 Lamp Socket Assembly - Contains 2 $29.07
23SR720174 Light Panel, 30 in.Stainless $124.15
23SR720176 Light Panel, 36 in.Stainless $129.96
23SR720178 Light Panel, 42 in.Stainless $135.00
24SR169003 Light Panel Mounting Kit - 2 Nuts & Screws $3.90
26SR169016 Aluminum Filter Spring Kit -Contains 3 $7.18
27SR680512 DuPont Teflon® Bottom Cover - QS3 30" $96.84
27SR680521 DuPont Teflon® Bottom Cover - QS3 36" $101.57
27SR680528 DuPont Teflon® Bottom Cover - QS3 42" $109.22
28SR501035 Autotransformer - QS3-B,C $39.94
29S99010307 Aluminum Filter, 42" Hood (QS3) - (Contains 2 filters) 11-7/8" x 20-11/32" $102.80
29S99010310 Non-ducted Filter Kit, 42" Hood - (Contains 2 filters) 10-13/16" x 19-5/16" $48.56
30SR607660 Black Plastic Hole Plug for top of hood $4.16
