NuTone 605 Valuetest Heat-A-Vent Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 605 Valuetest Heat-A-Vent Parts

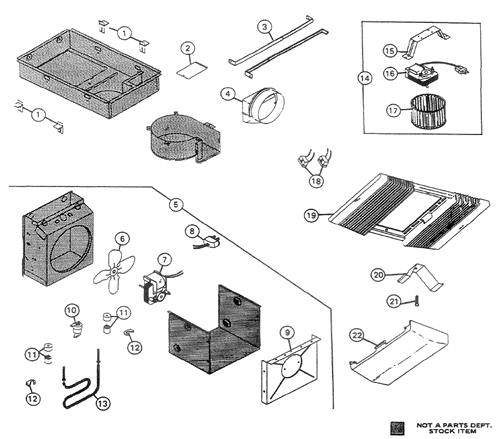

NuTone 605 Valuetest Heat-A-Vent Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 605RP New Current Production (Will Not Fit Into Existing Housing)
This product has been discontinued

 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
385585000 Hanger Rod $4.37
4S101183000 Duct Adapter $21.60
617728000 Fan Blade $14.40
10S53702000 Thermal Fuse Link $18.00
71166A000 Heat Motor/Blade $75.50
11S69314000 Insulator Bushing Set
This product has been discontinued

12S27546000 Element Support $18.00
13S58120000 Heating Element $28.80
1485598000 Vent Assy - Includes Modified Motor, Fan Blade & Mounting Bracket $99.78
1523255000 Motor Mount $1.58
1653709000 Motor - Obsolete See Model #85598000
This product has been discontinued

17S65467000 Blower Wheel - W/Clip For Use W/ Motor 89850 Only, Metal, (3 3/4" X 1 7/8") $28.80
17S85600000 Blower Wheel - W/Clip For Use W/ 53709 Motor Only, (4" X 2 1/4"), Ccw, Black Plastic $27.00
18SNT10034000 Receptacle (Part# changed to S99270982)
This product has been discontinued

18S99270982 Receptacle $18.00
18S56721000 Plug Receptacle (White)
This product has been discontinued

20S85604000 Strap
This product has been discontinued

19S89852000 Grille & Lens w/ lighted (16 1/4" X 9 3/4") $71.10
2253741000 Lens Not Lighted - White Plastic Lens (9 3/4" X 5 1/4") $8.69
 S97017824 Grille Assembly (no lens included) $52.20
