NuTone 660 Valuetest Heat-A-Lite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 660 Valuetest Heat-A-Lite Parts

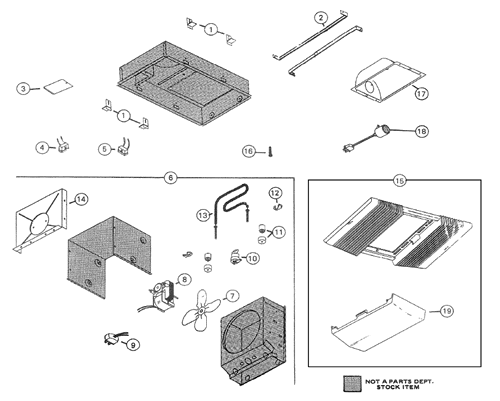

NuTone 660 Valuetest Heat-A-Lite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 BHFLED80 New Complete Unit, will not fit into exsisting housing. 14.25" X 8.25" X 5.75" Rough in dimensions 16.25"-X 9.75" GRILLE $197.33
285585000 Hanger Rod $4.37
3S66204000 Plug-Receptacle (Black) $18.00
4S56721000 Plug Receptacle (White)
This product has been discontinued
717728000 Fan Blade $14.40
10S53702000 Thermal Fuse Link $18.00
11S69314000 Insulator Bushing Set $18.00
12S27546000 Element Support
This product has been discontinued
13S58120000 Heating Element $28.80
12S89852000 Grille & Lens $71.10
19S53740000 Lens - (5 1/4" X 9 3/4") $22.50
