NuTone 665F Valuetest Heat-A-Ventlite Parts
Fan Replacement PDF

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 665F Valuetest Heat-A-Ventlite Parts

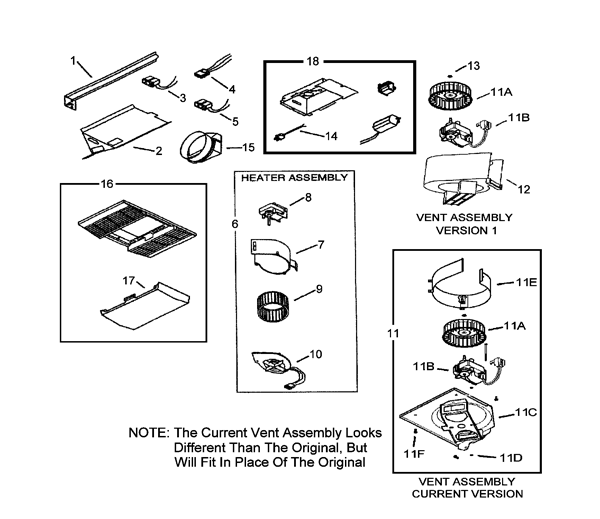

NuTone 665F Valuetest Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S44388000 Hanger Bar $33.84
3 S99270981 Receptacle - White $27.26
4 S89843000 Plug (Heat)
This product has been discontinued
5 S99270982 Receptacle - Black $18.00
6 S89844000 Heater Assembly Includes 7,8,9,10 (Plastic Housing w/ 3-prong plug)
This product has been discontinued
7 S61579000 Scroll (Plastic
This product has been discontinued
  89844000 Motor, Blade, Element, Screws (must have plastic housing) $90.00
9 S66583000 Blower Wheel - Heat, Cw, (3 3/4" X 2") $24.30
10 S89756000 Heater Element (Includes Thermal Protector) $115.62
11 S97017646 Vent Kit New On Flat Metal Plate (Current Version) $91.18
11A S82403000 Blower Wheel - White Plastic, (5"X 1 1/4") $27.26
11B S99080592 Motor - Vent To Fit On Metal Flat Bracket $67.68
11b S86693000 Vent Motor Assy - Motor modified/Blade To Fit Into Your Plastic Housing, Prior To 2005 (Includes 10A,10B $72.82
11C S97017080 Motor Mounting Plate Metal Flat $27.26
11D S99260428 Motor Nut $18.00
11E S98010286 Scroll Band $27.26
11F S99150576 Screw, #8 X 3/8" Sheet Metal $27.26
13 S65462000 Compression Clip That Holds Blower Wheel To Motor Shaft $1.48
14 S89878000 Cord Set $7.00
15 S101183000 Duct Adapter $27.26
16 S89852000 Grille & Lens Plastic (16 1/4 X 9 3/4) $67.68
17 S53740000 Lens - (5 1/4" X 9 3/4") Plastic $27.26
