NuTone 9013 Deluxe Heat-A-Lite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9013 Deluxe Heat-A-Lite Parts

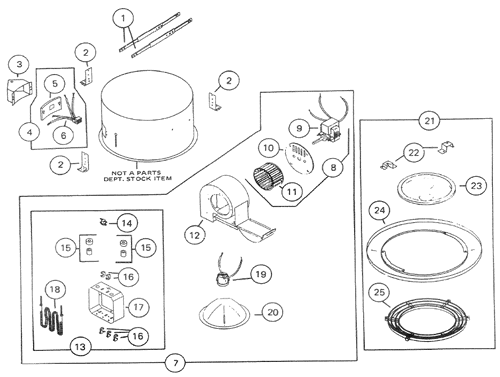

NuTone 9013 Deluxe Heat-A-Lite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 9093wh New current production, will NOT fit into same housing 9093WH (brand new current production round heat/vent/light/nightlight)
This product has been discontinued

113306000 Hanger Bar Set $6.46
8S69355000 HEAT MOTOR/BLADE/ Round Plate (9013) $130.50
9S69285000 Motor (Motor Kit: Contains Motor and Blower Wheel $99.90
9S57769000 MOTOR - (Heat) #J38-075-7072, CCW for 9013N only $118.80
10S57766000 MOTOR MOUNT PLATE
This product has been discontinued

11S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2") for 9013N $24.30
11S66142000 Blower Wheel (3¾" x 2½") $28.80
1264955005 Blower House $17.53
13S27544000 Heat box $112.50
13S27544000 Heat Box Assembly $112.50
14S99271494 THERMAL PROTECTOR $18.00
15S69314000 INSULATOR BUSHING SET
This product has been discontinued

16S27546000 ELEMENT SUPPORT
This product has been discontinued

18S58120000 HEATING ELEMENT $28.80
2035964000 REFLECTOR
This product has been discontinued

2035964206 Reflector $5.03
21S36271000 GRILLE ASSEMBLY(WHITE) $317.70
23S27561000 Lens Glass round
This product has been discontinued

250474A00 Grille/Lens
This product has been discontinued
