NuTone 9013NL Deluxe Heat-A-Lite Parts

Listed below are the parts available for this model.

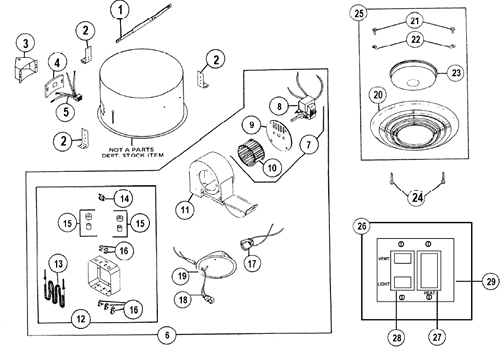

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9013NL Deluxe Heat-A-Lite Parts
NuTone 9013NL Deluxe Heat-A-Lite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  9093wh New current production, will fit into same housing 15 3/8 grille
This product has been discontinued

  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
3 35962000 OUTLET BOX $3.19
4 S35963000 OUTLET BOX COVER
This product has been discontinued

5 S0480A000 RECEPTACLE/SOCKET/WIRE
This product has been discontinued

7 S69355000 BLOWER ASSY - HEAT Motor Modified/blade Modified/round flat bracket $123.14
8 57769000 MOTOR Modifed Only - (Heat) #J38-075-7072, CCW for 9013nl $111.86
9 S57766000 MOTOR MOUNT PLATE
This product has been discontinued

10 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" 9013n $24.30
10 S66142000 BLOWR WHEET 3 3/4 X 2 1/2 9013 $33.84
13 S58120000 HEATING ELEMENT $42.30
14 S99271494 THERMAL PROTECTOR $27.26
12 S27544000 Heat Box Assembly $106.22
13 S27544000 Heat Box Assembly $106.22
15 S69314000 INSULATOR BUSHING SET
This product has been discontinued

16 S27546000 ELEMENT SUPPORT
This product has been discontinued

19 35964000 REFLECTOR
This product has been discontinued

21 27603015 SCREW 8-32X5/16 LG
This product has been discontinued

22 56706000 LENS MTG BRKT $0.76
23 S27561000 LENS Glass - 8" X 2" ROUND
This product has been discontinued

24 S101284000 SCREW 10X1 1/4 PH PAN HD A $27.26
25 S36271000 GRILLE ASSEMBLY(WHITE) $298.92
27 85932000 SINGLE SWITCH BRIGHT WHITE ( no plate) $4.75
28 S85921000 2 SWITCH BRIGHT WHITE (need 2 sold each no plate) $24.95
