NuTone 9112 Deluxe Heat-A-Ventlite Parts

Listed below are the parts available for this model.

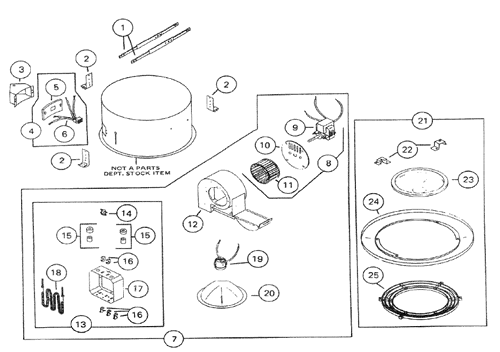

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9112 Deluxe Heat-A-Ventlite Parts
NuTone 9112 Deluxe Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.57
15S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $20.05
16S57766000 MOTOR MOUNT PLATE
This product has been discontinued

1758000000 MOTOR Modifeid- (ccw Vent)
This product has been discontinued

1935964000 REFLECTOR
This product has been discontinued

22S27561000 LENS - 8" X 2" ROUND
This product has been discontinued

26S69314000 INSULATOR BUSHING SET $5.40
27S99271494 THERMAL PROTECTOR $8.87
28S27546000 ELEMENT SUPPORT
This product has been discontinued

29S58120000 HEATING ELEMENT $15.30
