NuTone 9114NT Kickspace Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9114NT Kickspace Heater Parts

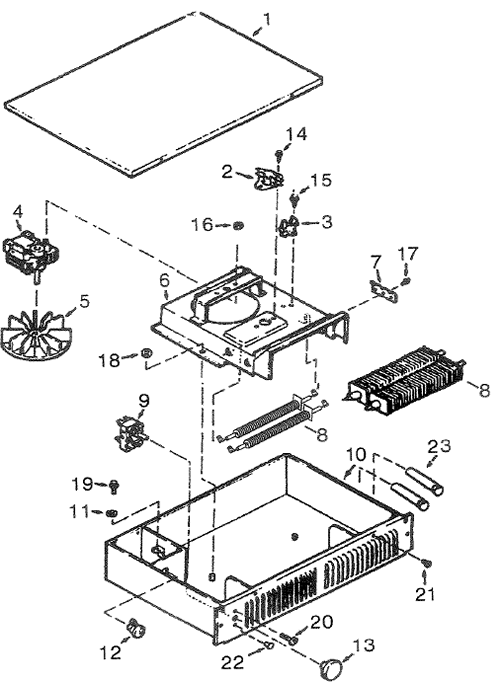

NuTone 9114NT Kickspace Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown 114 COMPLETE New Kick Space Heater No Thermostat $222.32
not 87W WALL THERMOSTAT 50-85 single gang $27.72
1 S99522899 COVER $27.26
2 S99522400 THERMAL OVERLOAD LIMIT SWITCH $46.06
3 S99521763 THERMAL FUSE $27.26
4 S99521765 MOTOR - Shaft size 1 1/2", CCW $76.14
5 S99020130 BLOWER WHEEL - 5" x 1 1/4", Black Plastic $27.26
6 S99521760 MOTOR PLATE $40.42
7 S99521761 ELEMENT RETAINER $27.26
8 S99271288 HEATER ELEMENT $67.68
11 S99521770 CUPPED WASHER $4.52
12 S99521768 STRAIN RELIEF $5.28
  S99521769 KNOB (3 left-then obsoleted) $33.84
