NuTone 9605N Deluxe Heat-A-Vent Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9605N Deluxe Heat-A-Vent Parts

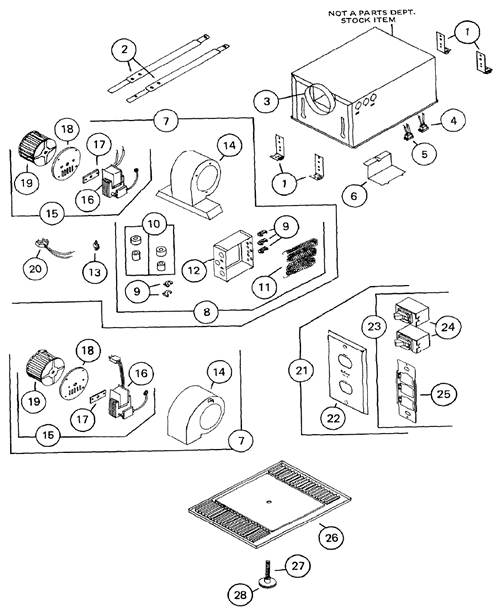

NuTone 9605N Deluxe Heat-A-Vent Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
4 S66204000 PLUG-RECEPTACLE (Black) $27.26
5 S56721000 PLUG RECEPTACLE (White)
This product has been discontinued

7 69297000 B-UNIT ASSY-HEAT
This product has been discontinued

8 S99271494 Thermo Protector $27.26
9 S27546000 ELEMENT SUPPORT
This product has been discontinued

10 S69314000 INSULATOR BUSHING SET
This product has been discontinued

11 S58120000 HEATING ELEMENT $42.30
15 S69355000 BLOWER ASSY Modified- HEAT $123.14
15 S69357000 BLOWER ASSY-VENT $157.92
16 57769000 MOTOR Modified - (Heat) #J38-075-7072, CCW $111.86
16 63675000 MOTOR - Modified Replacement (Vent #8) $96.30
17 S69289000 GROMMET KIT
This product has been discontinued

18 S57766000 MOTOR MOUNT PLATE ASSY
This product has been discontinued

19 S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $33.84
19 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $24.30
20 51073000 PLUG ASSY - BLACK
This product has been discontinued

28 S13173000 GRILLE NUT $27.26
  S11390000 DUCT CONNECTOR
This product has been discontinued
