NuTone 9665N Deluxe Heat-A-Ventlite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9665N Deluxe Heat-A-Ventlite Parts

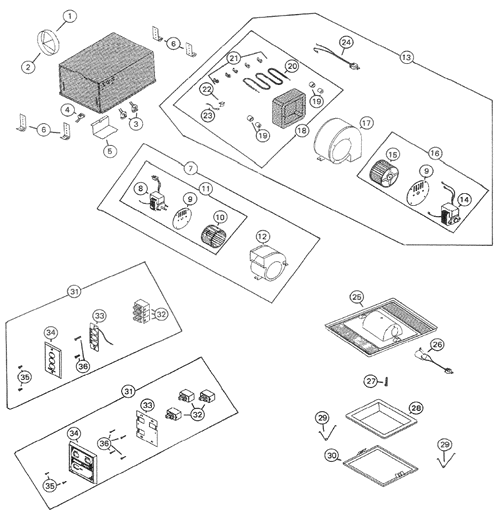

NuTone 9665N Deluxe Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
3 S66204000 PLUG-RECEPTACLE (Black) $27.26
4 S56721000 PLUG RECEPTACLE (White/Red) 3 left then obsoleted $50.76
8 63675000 MOTOR - (Vent #8) (modified replacement motor) $96.30
9 S57766000 MOTOR MOUNT PLATE
This product has been discontinued

10 S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $33.84
11 S69357000 BLOWER ASSY-VENT $157.92
13 69297000 B-UNIT ASSY-HEAT
This product has been discontinued

14 S57769000 MOTOR - (Heat) #J38-075-7072, CCW $111.86
15 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $24.30
16 S69355000 BLOWER ASSY - HEAT $123.14
15 S69314000 INSULATOR BUSHING SET
This product has been discontinued

20 S58120000 HEATING ELEMENT $42.30
21 S27546000 ELEMENT SUPPORT
This product has been discontinued

22 S99271494 THERMAL PROTECTOR $27.26
24 51073000 PLUG ASSY - BLACK
This product has been discontinued

  S11390000 DUCT CONNECTOR
This product has been discontinued

  52863015 screw 14 x 1/34 $1.85
