NuTone 9810N Wall Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9810N Wall Heater Parts

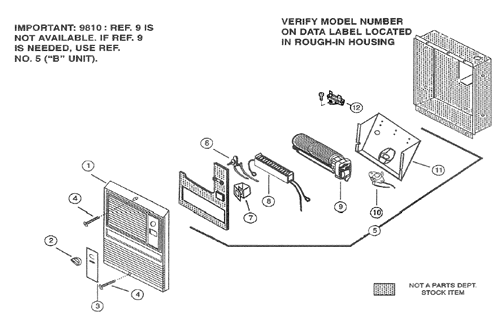

NuTone 9810N Wall Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown 9810WH New Complete 9810WH(white) $178.37
1 33640000 GRILLE ASSEMBLY - BROWN
This product has been discontinued

2 57277000 KNOB - BROWN (use s30845)
This product has been discontinued

3 57276000 NAMEPLATE-STANDARD
This product has been discontinued

5 44953000 B-UNIT ASSEMBLY $204.30
6 S57271000 THERMOSTAT W/NUT $27.26
7 33384000 THERMOSTAT COVER $1.33
9 S33178000 BLOWER & MTR ASSY $172.96
10 S99271433 Thermo protector replacement $51.70
10 0936B000 THERMO PROTECTOR-going obsolete see s99271433)
This product has been discontinued

11 61962000 HEAT BOX $28.35
12 S99521763 THERMAL FUSE $27.26
  S99111432 Grille (white-need s99360253) $67.68
  S99360253 Knob-White (use with s99111432_ $27.26
