NuTone 9960 Heat-A-Lite Bathroom Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9960 Heat-A-Lite Bathroom Heater Parts

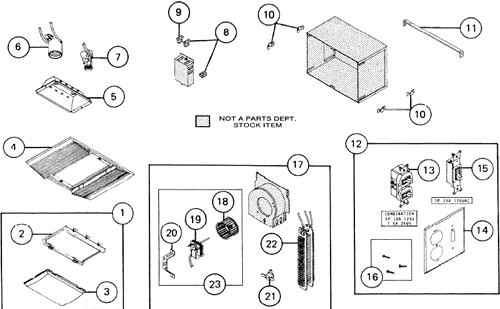

NuTone 9960 Heat-A-Lite Bathroom Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
* 9960 Complete New Unit--DISCONTINUED
This product has been discontinued

2 K4798000 Bezzel Only
This product has been discontinued

1 S10941174 BEZEL & LENS ASSEMBLY (Grille Sold Separately)
This product has been discontinued

4 S89339000 GRILLE Only- 16" X 11" X 1 1/4" (Lens/Bezel Sold Separately) $38.54
5 S100173000 REFLECTOR $69.56
5 S99770112 LAMP SOCKET - 100W $27.26
7 S35759000 LAMP SOCKET-7W (night light) $27.26
8 S66204000 PLUG-RECEPTACLE (Black) $27.26
9 S56721000 PLUG RECEPTACLE (White)
This product has been discontinued

11 S85585000 HANGER ROD $4.37
0 S89347000 HARDWARE BAG $27.70
18 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $24.30
20 S86081000 MOTOR MOUNT $27.26
21 S1179A000 THERMO PROTECTOR $27.26
22 S89312000 HEATING ELEMENT $84.60
  S99271426 Night Light $18.00
23 89314000 HEAT ASSY CW 2 5/8 SHAFT - Modified Motor,blade, bracket #18,19,20 f models prior to 2005 $107.76
