NuTone CV750 Central Vacuum Can Parts

Listed below are the parts available for this model.

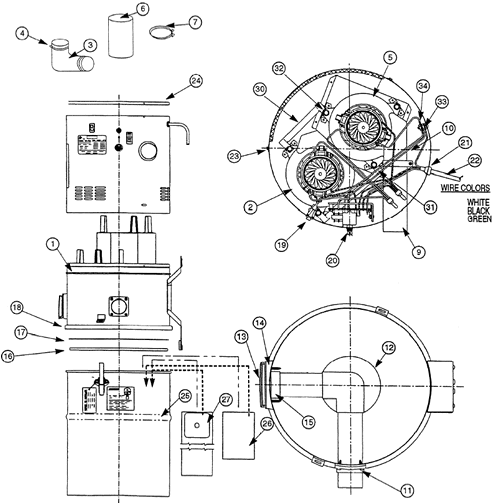

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CV750 Central Vacuum Can Parts
NuTone CV750 Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 391 REPLACEMENT VAC BAGS (3) $14.95
2 S44902REB MOTOR ASSY - LOW BNC# 10941100 $579.60
3 30796000 MOTOR CONNECTOR $14.04
4 39971000 CLAMP VENDOR # G-21PH $1.44
5 S44901REB MOTOR ASSY - UP BNC# 10941099 ( w stem) $390.60
6 35850000 COOLING VENT TUBE $11.82
7 30986000 COLLAR $2.32
8 S30364000 MOTOR GASKET
This product has been discontinued

9 35859000 TUBE - EXHAUST $15.52
10 39970000 CLAMP VENDOR # G-107PH $0.70
11 S33626000 MLD FLANGE ASY BNC 10941120
This product has been discontinued

12 33627000 TUBE ASSY BNC# 10941114
This product has been discontinued

16 S84129000 FILTER $50.40
21 65495000 STRAIN RELIEF $0.58
23 87176000 WRAP AROUND INSULATED $49.58
24 87162000 COVER ASSEMBLY $23.42
28 S1803A000 BRUSH SET (2) $27.61
30 86344206 STIFFENING BRACKET
This product has been discontinued

31 86345206 STIFFENING BRACKET
This product has been discontinued

33 52833015 SCREW 8-32X3/4 PH PAN HD M $0.74
  S33836000 WALL PLATE ASY $86.40
  S33846000 Bottom Pail $68.40
