NuTone G9092 Deluxe Heat-A-Ventlite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

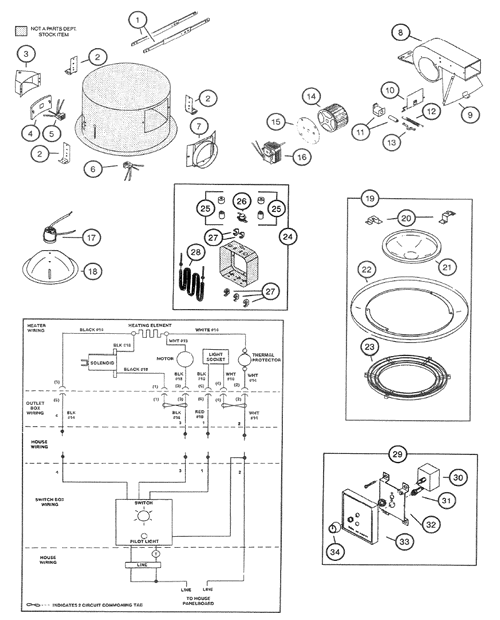

NuTone G9092 Deluxe Heat-A-Ventlite Parts
NuTone G9092 Deluxe Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 9093WH New current production, may not will fit into same housing 15 3/8 grille
This product has been discontinued

 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
14S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $28.80
15S57766000 MOTOR MOUNT PLATE
This product has been discontinued

1658000000 Motor Modified (Vent ccw)- need special tool to install $118.80
1835964000 REFLECTOR
This product has been discontinued

21S27561000 LENS - 8" X 2" ROUND
This product has been discontinued

25S69314000 INSULATOR BUSHING SET
This product has been discontinued

26S99271494 THERMAL PROTECTOR $18.00
27S27546000 ELEMENT SUPPORT
This product has been discontinued

28S58120000 HEATING ELEMENT $28.80
