NuTone H965 Deluxe Heat-A-Ventlite Parts

Listed below are the parts available for this model.

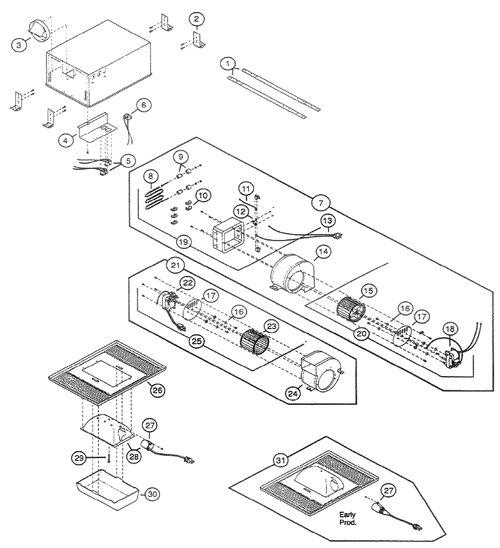

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone H965 Deluxe Heat-A-Ventlite Parts
NuTone H965 Deluxe Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BHFLED80 New Complete Unit, will not fit into exsisting housing. 14.25" X 8.25" X 5.75" Rough in dimensions 16.25"-X 9.75" GRILLE $197.33
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
5 S66204000 PLUG-RECEPTACLE (Black) $27.26
6 S56721000 PLUG RECEPTACLE (White)
This product has been discontinued

7 69297000 B-UNIT ASSY-HEAT (includes everything inside of 7 heat assy only not vent)
This product has been discontinued

8 S58120000 HEATING ELEMENT $42.30
9 S69314000 INSULATOR BUSHING SET
This product has been discontinued

10 S27546000 ELEMENT SUPPORT
This product has been discontinued

12 S99271494 THERMAL PROTECTOR $27.26
13 51073000 PLUG ASSY - BLACK
This product has been discontinued

15 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $24.30
16 S69289000 GROMMET KIT
This product has been discontinued

17 S57766000 MOTOR MOUNT PLATE ASSY
This product has been discontinued

18 S57769000 MOTOR - (Heat) #J38-075-7072, CCW $111.86
20 S69355000 BLOWER ASSY - HEAT $123.14
22 S57768000 MOTOR - (Vent) CCW, Shaft Size 1 1/4", 120V $91.18
23 S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $33.84
25 S69357000 BLOWER ASSY-VENT $157.92
30 S65776000 LENS - Plastic (8 3/4" x 5 3/4" x 2") $34.78
  S11390000 DUCT CONNECTOR
This product has been discontinued
