NuTone VH9417D Bulb Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone VH9417D Bulb Heater Parts

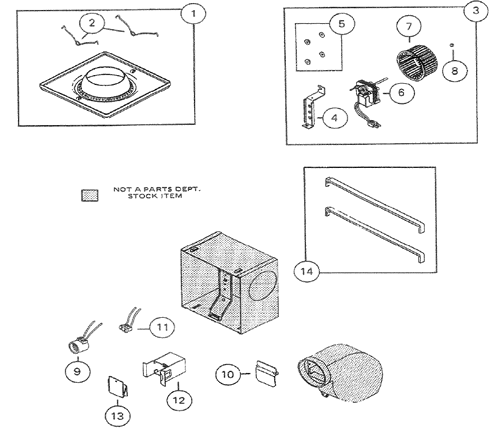

NuTone VH9417D Bulb Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S89199000 GRILLE ASSEMBLY - (10 1/4" X 10 1/4" X 1")
This product has been discontinued

3 S89222000 POWER UNIT ASSEMBLY $177.66
4 S89223000 BRACKET MOTOR MOUNTING $27.26
5 S69289000 GROMMET KIT $27.26
6 S89224000 MOTOR - Shaft Size, 7/32" x 2 3/16" CCW, 2 Prong Plug $81.78
7 S85600000 BLOWER WHEEL - w/Clip for use w/ 53709 Motor only, 4" x 2 1/4", CCW, Black Plastic $27.26
8 S65462000 COMPRESSION CLIP $1.33
11 S21032000 RECEPTACLE $7.36
14 S85585000 HANGER ROD $4.37
