BEST D49M30SB Range Hood Downdraft Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST D49M30SB Range Hood Downdraft Parts

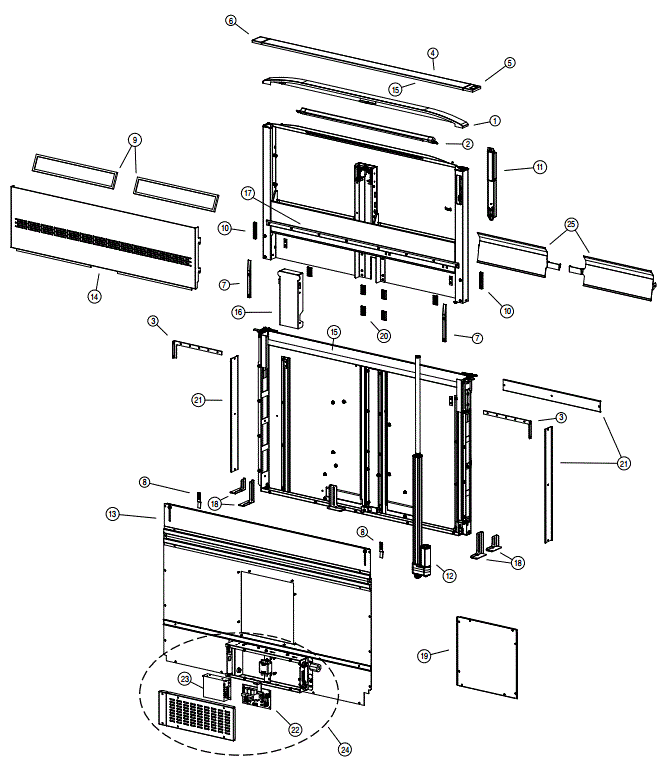

BEST D49M30SB Range Hood Downdraft Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 S97019624 TOP CAP ASSY 30N $245.34
1 S97021277-001 Top Cap $118.44
1 S97019636 Door Assembly Rev A,B,C $223.72
2 S97020367 Felt $27.26
3 S97021274 Door Assembly (right w/ Button) Rev D-E $130.50
4 S97021101 Door Assembly Hardware Kit $84.60
5 S97021069 Door Assembly Cover -Left $84.60
6 S99271515 LED Light Bar $126.50
7 S97019874 Chimney Seal $32.90
7 S97019640 Door Assemby Cover LH $59.22
8 S99111677 Chimney Plastic Slides $33.84
8 S98012028-B01 Lift Guide Cover Angle Bracket $38.25
9 S98012061 ANGLE BRACKETS(RIGHT & L $27.26
9 S97019910 Air Box Ramp Assembly $33.84
10 S98011659 Vent Cover $46.06
11 S99271616 Actuator $642.96
11 S99271510 Wire Harness for Air Box $126.90
11 S99710032 Spacers $27.26
12 S98011668 Airbox Hole Cover $139.12
13 S98012061 Legs (set of 2) $27.26
14 S97019584 Electrical Box Assy 15&16 $939.06
14 S99271524 Linear Actuator $175.50
15 S99271512 Obsolete Use Part # S97019584
This product has been discontinued
16 S99271573 Obsolete Use Part # S97019584
This product has been discontinued
16 S97020368 Fuse
This product has been discontinued
17 S97021257 Plastic Guides w/ Felt $24.30
18 S98011888 Chimney Grille w/ Baffles $268.84
19 S99010438 Filters $42.30
20 S99271514 User Interface $175.50
  S99271664 Wire Harness Rev C & D $173.90
  S99271510 Wireharness AirBox Rev A& B $126.90
  S97019665 Heat Sentry-OBSOLETE
This product has been discontinued
22 S97020362 Airbox Adjustment Legs $31.96
  S97019570 Hardware Package $27.26
  S97020366 Door Assembly Hardware $76.14
  S99111677 CHIMNEY PLASTIC SLIDES $33.84
  S97020380 SPACERS $33.84
  S98011888 Front Grille 30 Stainless $268.84
  S97020363 Baffle 30" Left/Right $71.44
  S97019874 Chimney Foam Seal 30" $32.90
