BEST D49M36SB Range Hood Downdraft Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST D49M36SB Range Hood Downdraft Parts

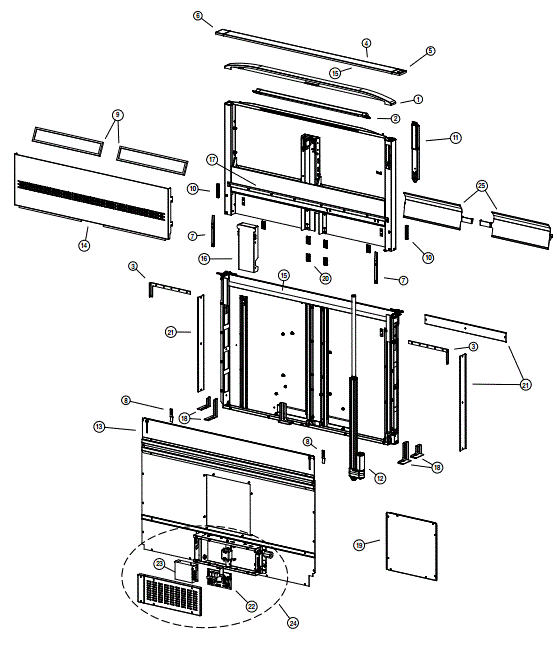

BEST D49M36SB Range Hood Downdraft Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 S97019625 TOP CAP ASSY 36N
This product has been discontinued
1 S97021277-002 Stainless Steel top cap assembly $284.82
2 S97020367 Felt $27.26
3 S97021107 Door Assembly Rev D-E $174.84
4 S97019637 Door Assembly w/ hardware REV A,B,C $242.52
5 S97021069 Trim Door Assembly $84.60
6 S99271616 LED LIGHT BAR after July 2018 $184.24
6 S99271516 LED LIGHT BAR $184.24
7 S97019875 Chimney Seal $84.60
8 S98012028-B01 Lift Guide Cover $38.25
9 S97020361 Angle Brackets Left & Right $34.78
9 S97020361 ANGLE BRACKETS(RIGHT & L $34.78
9 S97019910 Air Box Ramp Assembly $175.50
10 S98011659 Vent Cover $46.06
11 S99271616 Actuator $642.96
11 S99710032 Spacers $27.26
12 S98011668 AirBox Hole Cover $139.12
13 S98012061 Legs set of 2 $27.26
14 S97019584 Electrical Box Assembly 15 & 16 $936.09
14 S99271524 Linear Actuator $628.86
15 S99271512 Obsolete Use Part # S97019584
This product has been discontinued
16 S99271573 Obsolete Use Part # S97019584
This product has been discontinued
16 S97020226 Air Box Front $683.17
17 S98011159 Chimney Front Grille $298.92
17 S97021257 Plastic Guides w/ flet $24.30
18 S98011889 Chimney Grille $575.28
19 S99010439 Filters $42.30
20 S99271514 User Interface $175.50
21 S99271664 Wire Harness REV C & D $173.90
  S99271510 Wire Harness for Air Box Rev A & B $126.90
  S97019570 Parts Bag $27.26
27 S97019676 Lift Guide Puks $43.24
  S97020366 Door Assembly Hardware $76.14
  S99111677 CHIMNEY PLASTIC SLIDES $33.84
  S97020380 SPACERS $33.84
  S97020364 Baffle (right/left) $89.30
