BEST D49M48SB Range Hood Downdraft Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST D49M48SB Range Hood Downdraft Parts

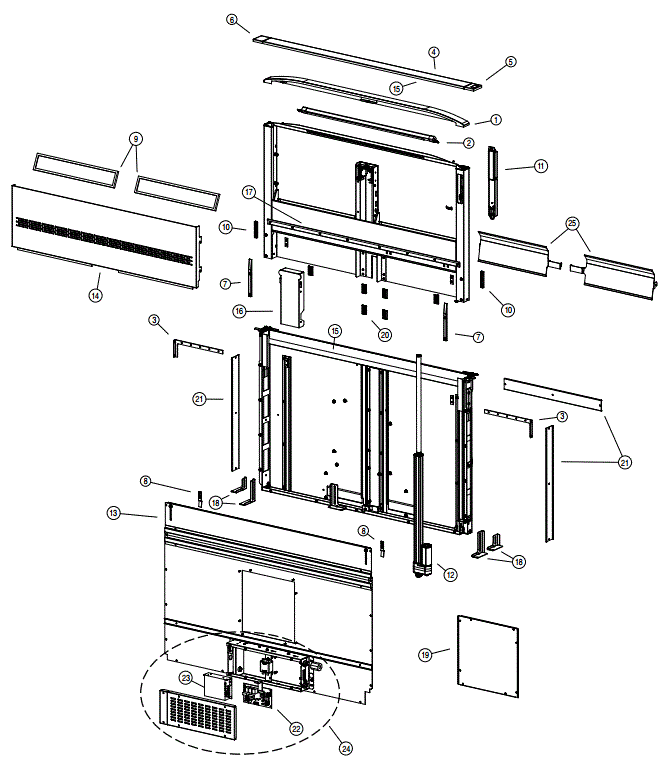

BEST D49M48SB Range Hood Downdraft Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 S97019626 TOP CAP ASSY 48" $185.44
1 S97021077-004 Top Cap Assmbly $167.40
2 S97020367 Felt $27.26
3 S97021274 Door Assembly Cover right w/ button $155.10
4 S97019638 Door Assembly w/ Hardware kit ReV A,B,C $282.00
4 S97021108 Door Assembly Hardware Kit REV d-E $155.10
5 S97021069 Door Assembly Cover Left $84.60
6 S99271517 Led Light Bar $250.98
6 S97020244 Door Assembly Cover w/ button $136.80
7 S97019877 Chimney Seal $104.96
8 S98012028-B01 Lift Guide Cover $38.25
8 S99111677 Chimnney Plastic Slides $33.84
9 S97019910 Air Box Ramp Assembly $33.84
9 S97020361 Angle Brackets Left & Right $34.78
10 S98011659 Vent Cover $46.06
11 S99271616 Actuator $642.96
11 S99710032 Spacers $27.26
12 S98011668 Airbox hole cover $139.12
13 S98012061 ANGLE BRACKETS(RIGHT & Left) $27.26
14 S97019584 Electrical Box Assembly 15 & 16 $939.06
14 S99271524 Linear Actuator $628.86
15 S99271512 Obsolete Use Part # S97019584
This product has been discontinued

16 S99271573 Obsolete Use Part # S97019584
This product has been discontinued

17 S97021257 Plastic Guides w/ flet $24.30
18 S98011890 Chimney Front Grille Stainless $604.42
19 S99010400 Filter $67.68
20 S99271514 User Interface $175.50
  S97019570 Parts Bag - $27.26
  S992712664 Wire Harness REV C & D $173.90
  S99271510 Wire Harness for Air Box Rev A & B $126.90
16 S97020227 Air Box Front $0.00
27 S97019676 Lift Guide Puks $43.24
  S97020366 Door Assembly Hardware $76.14
  S99111677 CHIMNEY PLASTIC SLIDES $33.84
  S97020380 SPACERS $33.84
  S97020365 Baffle W/Right/Left $94.00
  New Part $0.00
