BEST IC34IQ100SB Island Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IC34IQ100SB Island Range Hood Parts

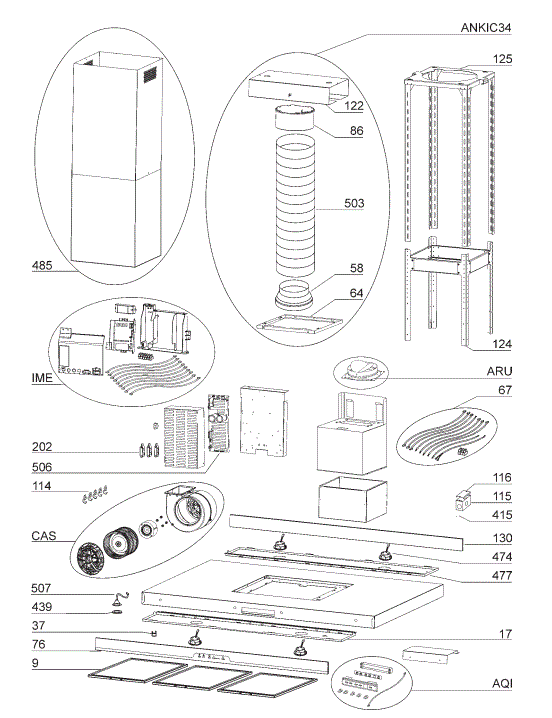

BEST IC34IQ100SB Island Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087679 Grease Filters $19.28
17SBE3351998 Light Diffuser Support $44.01
37SB02300804 Heat Sentry $14.45
67SB06102619 Wires Assembly $53.35
76SB003102891 Glass Front Trim $232.74
114SB032904990 Runner Wires $4.74
115SBE3350233 Wiring Box $11.79
124SB08092904 Telescopic Structure Bottom $90.02
125SB08093457 Telescopic Structure Top $159.28
130SB08092983 Glass Trim Back $220.81
415SB03292596 Fairlead $0.51
439SB02320034 Grommet $4.39
474SB08093413 Led Lamp $91.40
477SBE3352074 Light Diffuser Support Back $43.25
485SB08016376 Decorative Flue Assembly $297.88
506S97019431 Bldc Driver $208.13
507SB06102584 Calibration Button Assembly $38.63
AQISB06102594 Switch Box Assembly $58.54
ARUSB080810849 Duct Connector Assembly 10” $30.49
CASSB06002259 Blower Assembly $352.69
 SB080811002 Fitting Set $5.36
58SB03294170 Outlet Reduction $12.82
64SB08093447 Non-Ducted Filter Frame $43.65
86SB03292300 Outlet Flange $5.96
503SB02011557 Expandable Duct $54.29
AFCWC345SB08999176 Non-Duct Filte $35.62
0HCK44 Cord Kit with 6' cord and plug $13.93
