BEST IEX222SS Kitchen Rangehood Parts

Listed below are the parts available for this model.

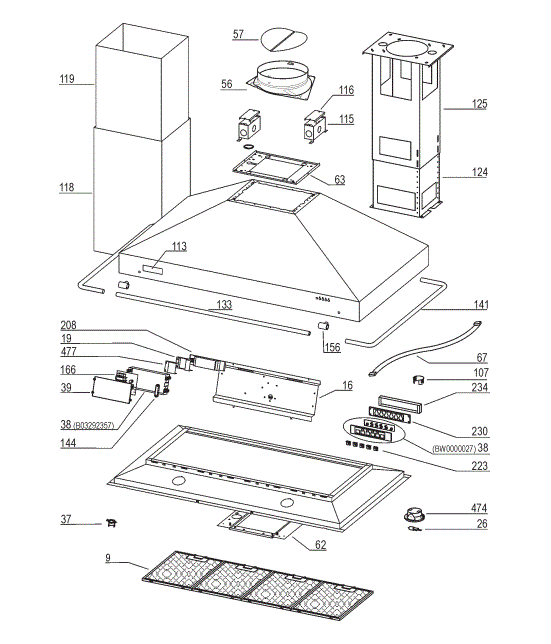

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IEX222SS Kitchen Rangehood Parts
BEST IEX222SS Kitchen Rangehood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087141 Grease Filter (Replaced Sb08087132) $47.09
19SB03295005 Capacitor Protection
26SB02300891 Halogen Lamp Bulb $16.87
37SB02300787 Heat Sentry $38.83
38SB03292357 Control Board Box $29.36
39SB03294033 Control Board Box Cover $22.91
107SB03202287 Cable Stop $1.62
115SBE3495228 Wiring Box $32.64
119SBE3403578 Decorative Flue Top $479.23
124SB03120185 Telescopic Structure Bottom
125SB03120186 Telescopic Structure Top
133SB02009290 Ladle Bar $69.55
141SB02009301 Side Utensil Rail $32.32
156SB02009186 Coupling Sleeve $20.40
166SB08086670 Circuit Board
208SB02300729 Transformer
223SB03202296 Switch Button $7.22
230SB03292477 Switch Board Box Cover $11.58
234SB03292476 Control Board Box $0.53
474SB02300790 Halogen Lamp Housing $14.49
477SB03294776 Closing $8.59
ARUSB08092501 Duct Connector Assembly (Includes Key Nos.56, 57) $33.80
 SB06103241 Switch Box Assembly (Includes Key Nos.67, 107, 38, 223, 230, 234) $28.82
0HCK44 Cord Kit with 6' cord and plug $13.93
