BEST IM42I50B Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IM42I50B Range Hood Parts

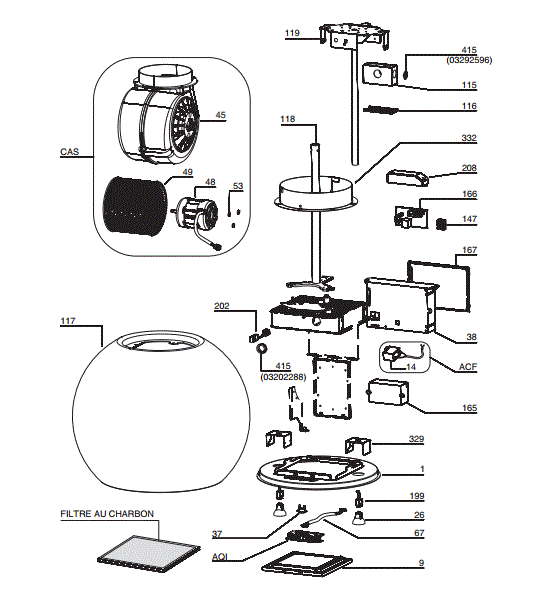

BEST IM42I50B Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 SB03102790 Frame (White) $118.49
1 SB03102797 Frame (Black) $118.49
9 SB08087696 Grease Filter $64.86
37 SB02300804 Thermostat $42.30
45 SBW0000019 Blower
This product has been discontinued

48 SB02310219 Motor (Clockwise)
This product has been discontinued

49 SB03295076 Fan (Clockwise) $51.70
53 SB03204177 Rubber Washer
This product has been discontinued

67 SB02301006 Wires $9.36
116 SBE3351530 Feeder Cable Connection Boxcover
This product has been discontinued

118 SB08093038 Bottom Duct Extension $128.63
119 SB08093285 Upper Duct Extension $104.08
147 SBR2300132 Junction Clamp $27.26
165 SB03295008 Electrical Box $33.84
166 SB08080865 Electrical Printed Circuitboard $189.88
199 SB02320348 Ceramic Insulator Base $9.79
202 SB03292063 Reflector Stop $3.53
208 SB02300861 Transformer $109.04
332 SB08093286 Cover $66.31
415 SB03202288 Fairlead $0.53
415 SB03292596 Fairlead $0.51
998 SB080810974 Fitting Set $28.98
ACF SB06102235 Condenser Assembly With Wires (Includes Key No. 14) $26.42
AQI SB06103984 Switch Box Assembly (White) $47.66
AQI SB06103891 Switch Box Assembly (Black) $33.21
CAS SB06002013 Blower Assembly (Includes Key No. 45, 48, 49, 53) only works with B,C,& D Revisions. $331.82
  SB08087829 Charcoal Filter $135.36
  SB04302155 Mounting Template $4.46
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
