BEST IM42I50W Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IM42I50W Range Hood Parts

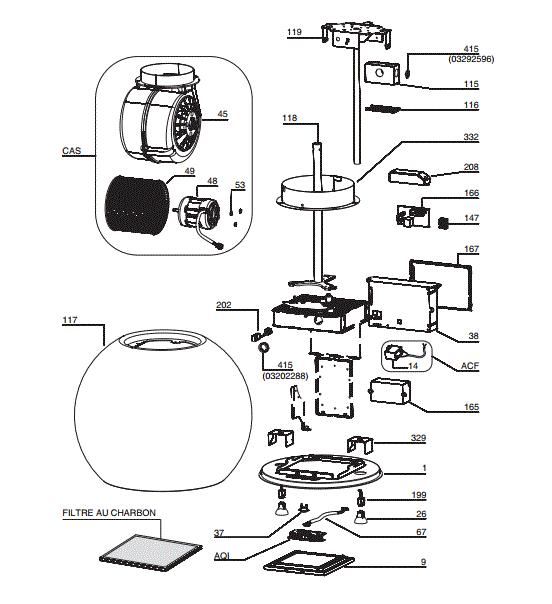

BEST IM42I50W Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1SB03102790 Frame (White) $99.49
1SB03102797 Frame (Black) $99.49
9SB08087696 Grease Filter $50.06
37SB02300804 Thermostat $14.45
45SBW0000019 Blower
48SB02310219 Motor (Clockwise)
49SB03295076 Fan (Clockwise) $24.53
53SB03204177 Rubber Washer $1.55
67SB02301006 Wires $4.79
116SBE3351530 Feeder Cable Connection Boxcover
118SB08093038 Bottom Duct Extension $96.97
119SB08093285 Upper Duct Extension $74.54
147SBR2300132 Junction Clamp $11.07
165SB03295008 Electrical Box $14.85
166SB08080865 Electrical Printed Circuitboard $81.52
199SB02320348 Ceramic Insulator Base $8.23
202SB03292063 Reflector Stop $2.97
208SB02300861 Transformer $44.73
332SB08093286 Cover $46.44
415SB03202288 Fairlead $0.53
415SB03292596 Fairlead $0.51
998SB080810974 Fitting Set $14.47
ACFSB06102235 Condenser Assembly With Wires (Includes Key No. 14) $17.64
AQISB06103984 Switch Box Assembly (White) $33.23
AQISB06103891 Switch Box Assembly (Black) $27.90
CASSB06002013 Blower Assembly (Includes Key No. 45, 48, 49, 53) $199.06
 SB08087829 Charcoal Filter $28.39
 SB04302155 Mounting Template $2.00
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
0HCK44 Cord Kit with 6' cord and plug $13.93
