BEST IPP9IQT42SB Island Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST IPP9IQT42SB Island Range Hood Parts

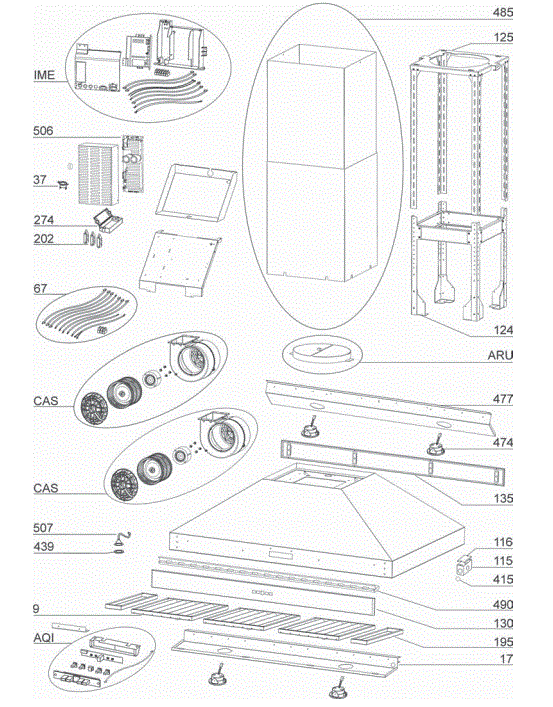

BEST IPP9IQT42SB Island Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087951 Grease Filters $96.44
17SBE3351864 Light Diffuser Support $64.08
37SB02300804 Heat Sentry $14.45
67SB06102599 Wires Assembly $97.97
115SBE3350233 Wiring Box $11.79
124SB08093422 Telescopic Structure Bottom $139.23
125SB08093456 Telescopic Structure Top $83.50
130SBE3405184 Front Trim $111.71
135SBE3405178 Trim Back $104.06
195SBE3351870 Filter Spacers $24.30
274SB03295035 Fuse Box $7.38
415SB03292596 Fairlead $0.51
439SB02320034 Grommet $4.39
474SB02300918 Halogen Lamp $39.71
477SBE3351866 Light Diffuser Support Back $41.67
485SB08016370 Decorative Flue Assembly $214.67
490SBE3405185 Grease Rails 42” $44.37
506S97019434 Bldc Driver $331.18
507SB06102584 Calibration Button Assembly $38.63
AQISB06102600 Switch Box Assembly $71.17
ARUSBE3405192 Duct Connector Assembly 10” $78.44
CASSB06002259 Blower Assembly $352.69
 SB080810996 Fitting Set (Includes Key No. Aru) $83.02
0HCK44 Cord Kit with 6' cord and plug $13.93
