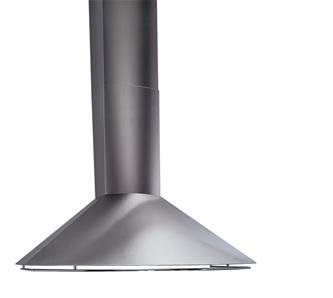

BEST K27342SS Kitchen Rangehood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST K27342SS Kitchen Rangehood Parts

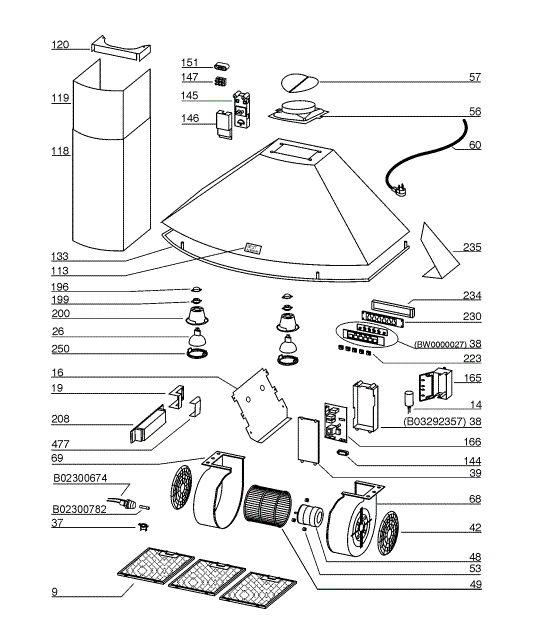

BEST K27342SS Kitchen Rangehood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087165 Grease Filter 8-1/2 x 11-1/4 sold separately need 3 $45.68
14SB02300233 Motor Capacitor $10.67
19SB03295005 Terminal Cover
26SB02300774 Halogen Lamp Bulb $20.41
37SB02300787 Heat Sentry $38.83
38SB03292357 Wiring Box $29.36
39SB03294033 Wiring Box Cover $22.91
42SB03295001 Ductfree Filter Bracket $17.03
48SB02310184 Motor $98.15
49SB03295071 Blower Wheel $15.28
53SB03204177 Rubber Washer $1.55
60SB02300249 Feeder Cable $15.75
118SBE3341840 Decorative Flue Bottom $48.40
119SBE3341841 Decorative Flue Top $63.14
120SB03292293 Flue Mounting Bracket $15.16
133SB02009208 Utensil Holder $103.82
147SBR2300132 Terminal Block $11.07
151SB032920200 Electrical Box Wires Stop
165SB03295008 Control Box $14.85
166SB08086662 Electrical Printed Circuit Board (B version only) $144.36
196SB02009193 Reflector $7.49
199SB02300688 Lamp Socket $20.02
200SB02009103 Lamp Shroud $26.82
208sb02300739 Transformer $81.68
223SB03202296 Switch Button $7.22
230SB03292477 Switch Board Box Cover $11.58
234SB03292476 Control Board Box $0.53
250SB02009102 Ring Nut $23.56
477SB03294776 Terminal Cover $8.59
998SB080810502 Hardware Package $31.72
ARUSB08092518 Duct Connector Assembly (Includes Key Nos. 56, 57) $31.03
 SB06002019 Blower Assembly (Includes Key Nos. 42, 48, 49, 53, 68, 69) $345.91
 SB06107766 Switch Box Assembly (Includes Key Nos.234, 38, 223, 230) $32.67
 SB02300782 Fuse $9.56
 SB02300674 Fuse Holder
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
0HCK44 Cord Kit with 6' cord and plug $13.93
