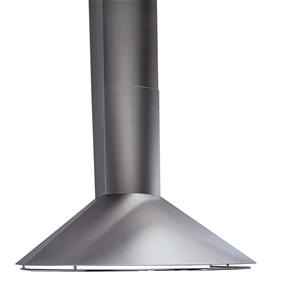

BEST KEX27342SS Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST KEX27342SS Range Hood Parts

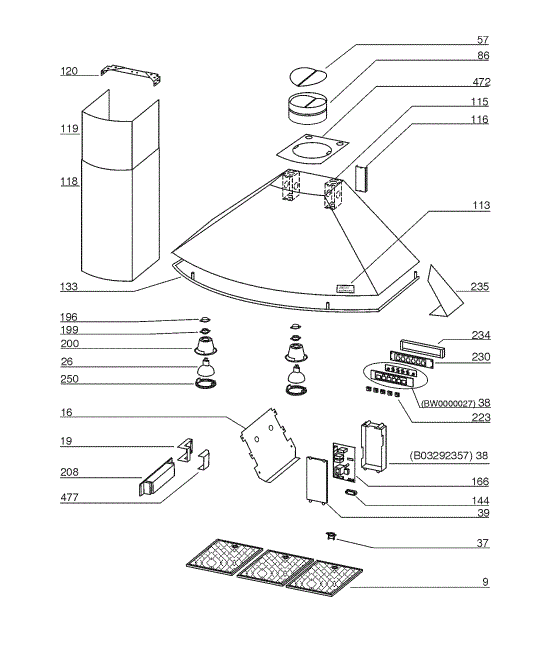

BEST KEX27342SS Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9 SB08087165 Grease Filter 8-1/2 x 11-1/4 sold separately need 3 sold each $93.06
  SB06107359 Switch Box Assembly (Includes Key Nos.234, 38, 223, 230) $76.14
0 HCK44 Cord Kit with 6' cord and plug $42.30
9 SB08087163 Grease Filter flip latch 9.25 x 12.75 3 required for 90" 4-42 &48" sold each $76.14
19 SB03295005 Terminal Cover
This product has been discontinued

26 SB02300774 Halogen Lamp Bulb $22.93
37 SB02300787 Heat Sentry $59.22
38 SB03292357 Electrical Box $42.30
38 SBW0000027 Controls Board + Trimming (Replaced By 08085018)
This product has been discontinued

39 SB03294033 Electrical Box Cover $31.96
86 SB08088242 Duct Connector And Damper Flap (Replaced By Sb08010199) $62.75
113 SB02011284 Nameplate (Replaced By Sv05869) $14.40
115 SBE3334250 Feeder Cable Connection Box $18.21
116 SBE3334252 Wiring Box Cover (Replaced By Sbe3351530)
This product has been discontinued

118 SBE3345403 Decorative Flue Bottom $133.48
119 SBE3345404 Decorative Flue Top $125.96
120 SB08091367 Flue Mounting Bracket $33.84
133 SB02009208 Utensil Holder (90Cm Model) $223.88
133 SB02009340 Utensil Holder (42” Model) $111.78
166 SB08086644 Control Board (Replaced by Sb08086670)
This product has been discontinued

196 SB02009193 Reflector $27.26
199 SB02300688 Lamp Socket
This product has been discontinued

200 SB02009103 Lamp Shroud $67.68
208 sb02300739 Transformer $135.36
223 SB03202296 Switch Button $27.26
230 SB03292477 Switch Board Box Cover $11.58
234 SB03292476 Control Board Box
This product has been discontinued

250 SB02009102 Ring Nut $33.84
477 SB03294776 Terminal Cover $9.65
998 SB080810517 Hardware Package $25.47
