BEST KEX808736SS Island Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST KEX808736SS Island Range Hood Parts

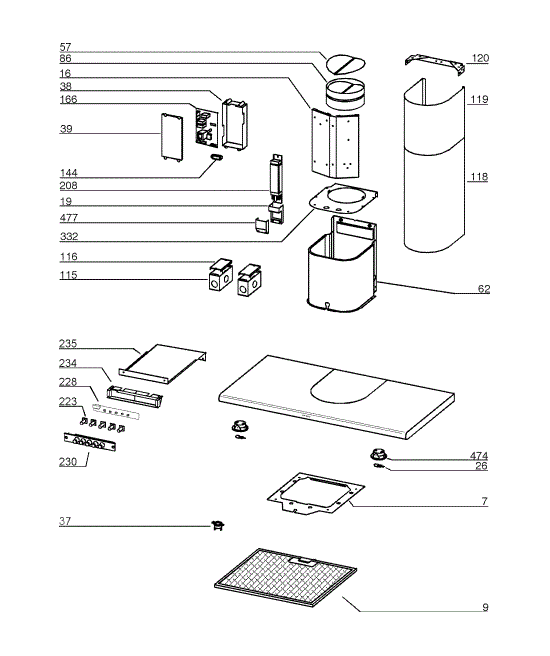

BEST KEX808736SS Island Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087169 Grease Filter $71.77
16SBE3345329 Electrical Box Support $8.65
19SB03295005 Terminal Box
26SB02300891 Halogen Lamp Bulb $16.87
37SB02300787 Heat Sentry $38.83
38SB03292357 Control Board Box $29.36
39SB03294033 Control Board Cover $22.91
62SB08091602 Blower Mounting Cover $29.81
115SBE3334250 Wiring Box $18.21
118SB003100591 Decorative Flue Bottom $137.41
119SBE3346837 Decorative Flue Top $146.93
120SB08091367 Flue Mounting Bracket $14.62
208SB02300739 Transformer $81.68
234SB03293009 Control Board Box
235SBE3345106 Switch Mounting Bracket $31.37
332SBE3345328 Cover $47.14
474SB02300798 Halogen Lamp Housing
477SB03294776 Terminal Cover $8.59
 SB06107786 Switch Assembly (Includes Key Nos. 223, 228, 230, 234, 235)
998SB080810482 Hardware Package $32.35
0HCK44 Cord Kit with 6' cord and plug $13.93
