BEST PIK45 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

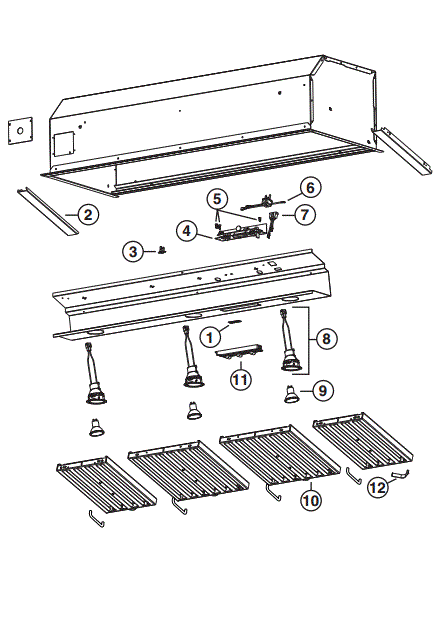

BEST PIK45 Range Hood Parts breakout large

Part Key	Part Number	Description	Unit Price
1	SV05869	Best Logo This product has been discontinued
0	HCK44	Cord Kit with 6' cord and plug	$20.70
2	SV12515	Spacer This product has been discontinued
3	SV03435	Heat Sentry™ Thermostat	$42.30
4	SV03255	Control Board Assembly	$286.70
6	SV02773	Male Connector 3 prong for Motor	$51.70
7	SV02772	Female Connector 2 prong for Motor	$44.18
8	SV16569	Lamp Shell, Socket And Trim Assembly (For Revision C, D,E)	$78.02
8	SV16555	Lamp Shell, Socket And Trim Assembly (For Revision A, B) use sv16569 This product has been discontinued
9	SV05921	LED (LED MR16, GU10, Base 50 W)	$32.40
10	SV18264	Baffle Filters (8.4" X 12.5") (2 Req.) 1 left at Best REV C/D This product has been discontinued
10	SV13431	Baffel Filters for REV A/B (9.24x12.5)	$127.84
10	SV18267	Baffle Filters (12" X 12.5") (1 Req.) REV C/D	$150.40
11	SV12969	Switch Cover, Black	$98.70
12	SV08337	Filter Spring (Set Of 6)	$42.30
	SV07399	Harness for SV03255 REV B,C,D) A has been obsoleted sv08570	$84.60
	SV03888	Parts Bag	$51.70
	SV03241	Chrome Ring REV A This product has been discontinued
	New Part	REV B Began in January 2007 with Serial Number 0201070101530 - Bulb Design Change to GU10 Base	$0.00
	New Part	REV C Began in March 2009 with Serial Number 0203090301395 - Grease Filter Design Change to Baffle Type & Light Trim Ring Design Change to Grey	$0.00
	New Part	REV D Begain in May 2011 with Serial Number 0204110500243 - Added Handles to Baffle Filters	$0.00
	New Part	REV E Was a Logo change	$0.00
	New Part	Motor Assembly used where P5 or P8 sold seperate	$0.00
