BEST U10230SBE Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST U10230SBE Range Hood Parts

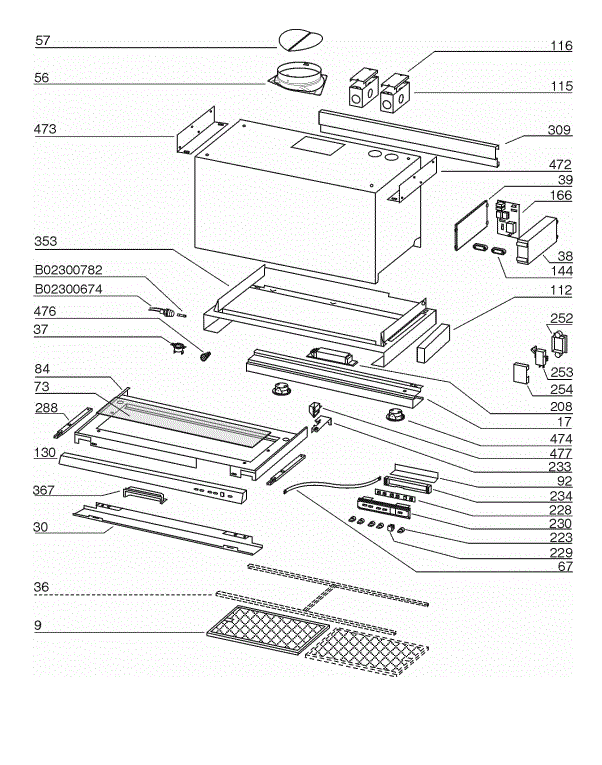

BEST U10230SBE Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9 SB08087077 Grease Filter(36" Model sold each 2 needed) 6x 15 15/16
This product has been discontinued
9 SB08087016 Grease Filter (30” Model) $67.68
9 SB08087017 Grease Filter (42” Model)
This product has been discontinued
17 SBE3347241 Halogen Support (36” Model) $87.86
17 SBE3347372 Halogen Support (30” Model) $75.44
17 SBE3347378 Halogen Support (42” Model) $97.36
30 SBE3347340 Controls Protection (36” Model) $36.32
30 SBE3347370 Controls Protection (30” Model) $29.72
30 SBE3347259 Controls Protection (42” Model) $36.61
36 SBE3403716 Filter Frame (36” Model) $96.82
36 SBE3403765 Filter Frame (42” Model) $67.21
37 SB02300804 Heat Sentry $42.30
38 SB03292357 Electrical Box $42.30
39 SB03294033 Electrical Box Cover $31.96
73 SB02005069 Glass (36” Model) $84.60
73 SB02005070 Glass (30” Model) $33.84
73 SB02005071 Glass (42” Model) $27.26
112 SB03294746 Wiring Protection $6.52
115 SBE3334250 Wiring Box $18.21
130 SB003101208 Front Panel (36” Model) $121.26
130 SB003101220 Front Panel (30” Model) $130.50
130 SB003101227 Front Panel (42” Model) $145.37
166 SB08086701 Wiring Board $177.66
208 sb02300739 Transformer $135.36
223 SB03294171 Switch Button
This product has been discontinued
233 SB03294740 Closing $8.75
252 SB03292349 Microswitch Box $27.26
253 SB02300620 Microswitch $33.84
254 SB03292350 Microswitch Box Cover $27.26
288 SB020111650 Runner Ball $27.26
353 SBE3403713 Display Support (36” Model) $204.86
353 SBE3403751 Display Support (30” Model) $193.25
353 SBE3403761 Display Support (42” Model) $205.74
367 SB03294747 Handle $3.53
472 SBE3347252 Right Bracket $27.26
473 SBE3347251 Left Bracket $33.84
474 SB02300733 Halogen Lamp
This product has been discontinued
476 SB03292203 Spacer Panel $1.73
477 SB03294785 Upper Closing $3.96
998 SB080810599 Hardware Package $45.61
ARU SB08092501 Flange + Non Return Flap Assembly (56,57)
This product has been discontinued
  SB02300782 Fuse $27.26
  SB02300674 Fuse Holder
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $42.30
