BEST U10236BLI Kitchen Range Hood Parts

Listed below are the parts available for this model.

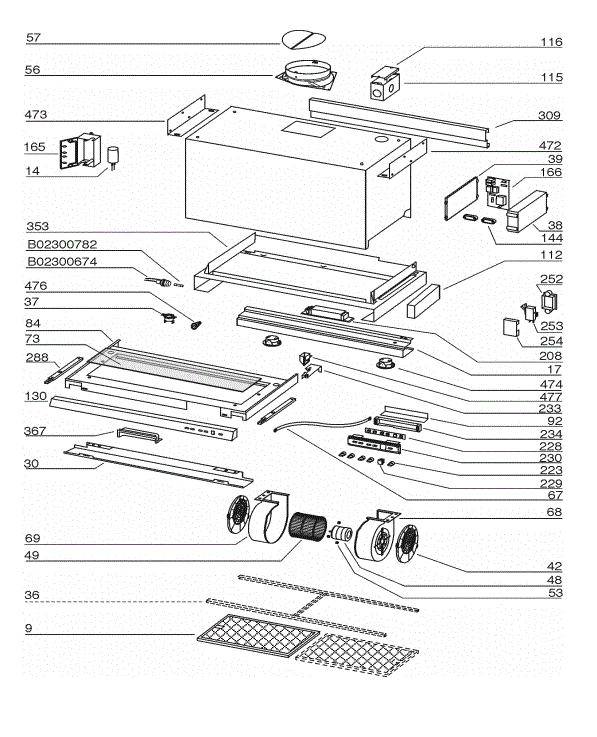

Use the parts explosion image to locate the associated part key number. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST U10236BLI Kitchen Range Hood Parts
BEST U10236BLI Kitchen Range Hood Parts breakout small
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9 SB08087077 Grease Filter (36" Model sold each 2 needed) 6x 15 15/16
This product has been discontinued

9 SB08087016 Grease Filter (30" Model) $67.68
14 SB02300233 Motor Capacitor $27.26
17 SBE3347241 Halogen Support (36" Model) $87.86
17 SBE3347372 Halogen Support (30" Model) $75.44
30 SBE3347340 Control Cover (36" Model)
This product has been discontinued

30 SBE3347370 Controls Cover (30" Model) $29.72
36 SBE3403716 Filter Frame (36" Model) $96.82
37 SB02300804 Heat Sentry $42.30
38 SB03292357 Electrical Box $42.30
39 SB03294033 Electrical Box Cover $31.96
73 SB02005069 Glass Visor (36" Model) $84.60
73 SB02005070 Glass Visor (30" Model) $33.84
112 SB03294746 Wiring Access Cover $6.52
115 SBE3334250 Wiring Box $18.21
130 SB003101208 Front Panel (36" Model) $121.26
130 SB003101220 Front Panel (30" Model)
This product has been discontinued

165 SB03295008 Motor Capacitor Box $33.84
166 SB08086700 Control Board
This product has been discontinued

208 sb02300739 Transformer $135.36
223 SB03294171 Switch Button
This product has been discontinued

233 SB03294740 Closure $8.75
252 SB03292349 Limit Switch Box $27.26
253 SB02300620 Limit Switch $33.84
254 SB03292350 Limit Switch Box Cover $27.26
288 SB020111650 Drawer Slide $27.26
353 SBE3403713 Drawer (36" Model) $204.86
353 SBE3403751 Drawer (30" Model) $193.25
367 SB03294747 Handle $3.53
472 SBE3347252 Right Bracket $27.26
473 SBE3347251 Left Bracket $33.84
474 SB02300733 Lamp Housing 2 LEFT
This product has been discontinued

476 SB03292203 Spacer Panel $1.73
477 SB03294785 Upper Closure $3.96
998 SB080810599 Hardware Package $45.61
ARU SB08092501 Damper/Duct Connector Assembly (56,57)
This product has been discontinued

  SB06108277 Switch Box Assembly: Includes Key Nos. 234, 228, 223, 229, 67, 230, 92 $102.46
  SB06002066 Blower Assembly: Includes Key Nos. 68, 69, 48, 49, 53, 42
This product has been discontinued

  SB02300782 Fuse $27.26
  SB02300674 Fuse Holder
This product has been discontinued

0 HCK44 Cord Kit with 6' cord and plug $42.30
