BEST WC46E90SB Range Hood Parts

Listed below are the parts available for this model.

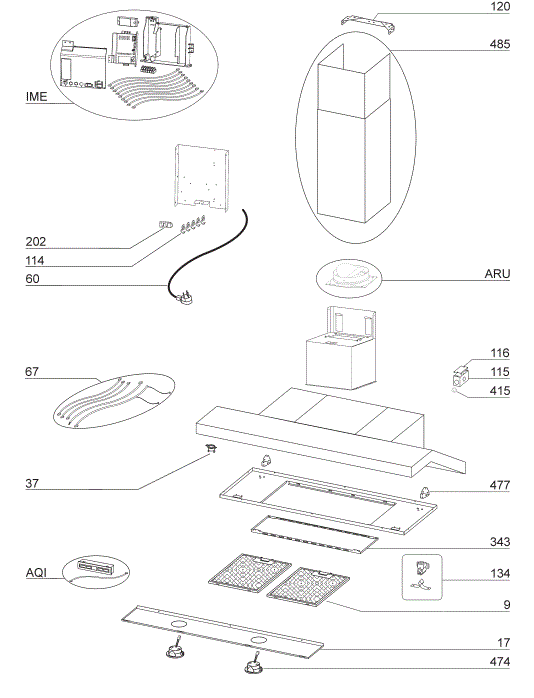

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST WC46E90SB Range Hood Parts breakout large

Part Key	Part Number	Description	Unit Price
9	SB08087955	Grease Filters This product has been discontinued
17	SBE3351924	Light Diffuser Support 90Cm	$54.09
17	SBE3351922	Light Diffuser Support 42”	$58.00
37	SB02300804	Heat Sentry	$42.30
60	SB02300249	Feeder Cable	$27.26
67	SB06102592	Wires Assembly	$59.22
114	SB032904990	Wire Clamp	$4.74
134	SB02011262	Latch Assembly	$4.25
343	SBE3352013	Closure Panel 90Cm	$65.38
343	SBE3351923	Closure Panel 42”	$82.98
439	SB02320034	Grommet	$27.26
474	SB08093413	Led Lamp	$285.76
485	SB08016368	Decorative Flue Assembly	$329.00
506	S97019430	Bldc Driver	$234.50
507	SB06102584	Calibration Button Assembly	$43.24
	SB080810993	Fitting Set (Includes Key No. 120)	$54.52
AQI	SB06102609	Switch Box Assembly	$83.66
CAS	SB06002259	Blower Assembly	$1,062.20
ANKWC46	SB08999183	Non-Ducted Kit (Includes Key No. 58, 86, 122, 503)	$200.05
58	SB03294170	Outlet Reduction	$32.90
86	SB03292300	Outlet Flange	$27.26
122	SB08093478	Non-Duct Plenum	$53.84
503	SB02011557	Expandable Duct	$64.66
AFCWC46	SB08999182	Non-Duct Filter	$31.61
0	HCK44	Cord Kit with 6' cord and plug	$42.30
