BEST WC46IQ90SB Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST WC46IQ90SB Range Hood Parts

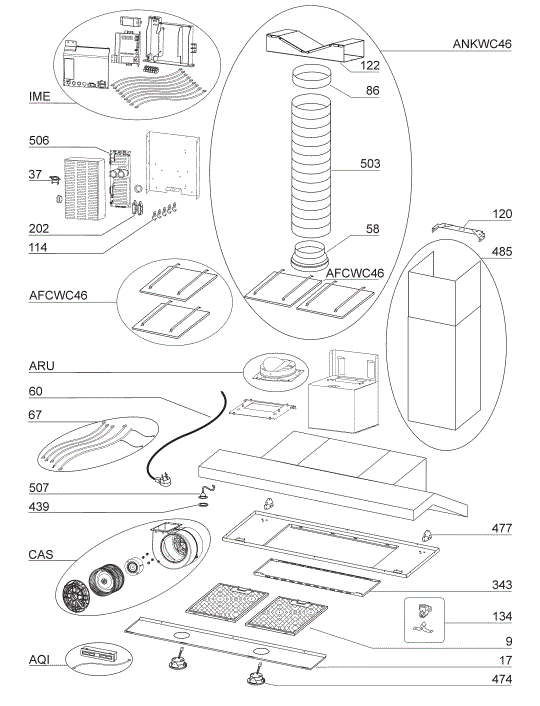

BEST WC46IQ90SB Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087955 Grease Filters $24.07
17SBE3351924 Light Diffuser Support 90Cm $42.06
17SBE3351922 Light Diffuser Support 42” $45.05
37SB02300804 Heat Sentry $14.45
60SB02300249 Feeder Cable $15.75
67SB06102592 Wires Assembly $52.58
114SB032904990 Wire Clamp $4.74
134SB02011262 Latch Assembly $1.89
343SBE3352013 Closure Panel 90Cm $50.80
343SBE3351923 Closure Panel 42” $69.68
439SB02320034 Grommet $4.39
474SB08093413 Led Lamp $91.40
485SB08016368 Decorative Flue Assembly $131.17
506S97019430 Bldc Driver $182.26
507SB06102584 Calibration Button Assembly $38.63
 SB080810993 Fitting Set (Includes Key No. 120) $22.55
AQISB06102609 Switch Box Assembly $74.43
CASSB06002259 Blower Assembly $352.69
ANKWC46SB08999183 Non-Ducted Kit (Includes Key No. 58, 86, 122, 503) $167.98
58SB03294170 Outlet Reduction $12.82
86SB03292300 Outlet Flange $5.96
122SB08093478 Non-Duct Plenum $41.84
503SB02011557 Expandable Duct $54.29
AFCWC46SB08999182 Non-Duct Filter $21.80
0HCK44 Cord Kit with 6' cord and plug $13.93
