BEST WM34I80SB Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST WM34I80SB Range Hood Parts

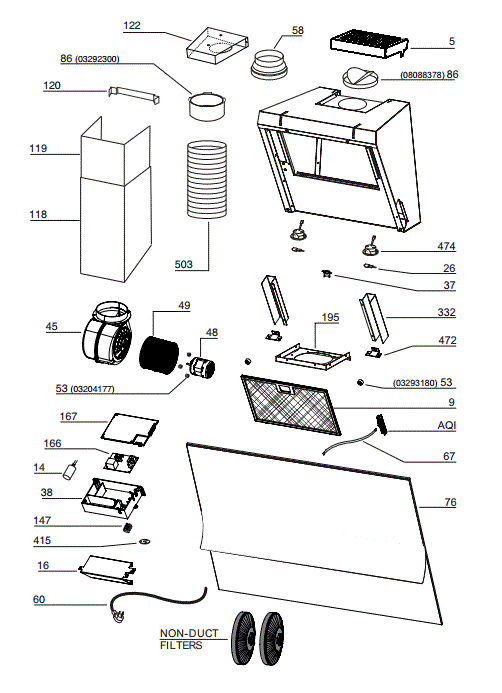

BEST WM34I80SB Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
14SB02300233 Capacitor $10.67
26SB02300890 Lamp Bulb T4-25WATT 120V G9BASE $8.05
37SB02300804 Thermostat $14.45
45SBW0000065 Blower Wheel Housing $71.78
48SB02310260 Motor (Clockwise) see sb0600280
49SB03295071 Blower Wheel for Fan (Clockwise) $15.28
53SB03204177 Rubber Washer $1.55
58SB03295018 Outlet Reduction $6.73
60SB02300249 Feeder Cable $15.75
86SB08088378 Outlet Flange $8.62
 SB03292300 Outlet Flange $5.96
147SBR2300132 Junction Clamp $11.07
166SB08080852 Electrical Printed Circuitboard $78.39
167SB03295596 Electrical Boxcover $4.23
474SB02300918 Lamp Socket $39.71
503SB02011452 Expandable Duct $28.12
AQISB06103891 Switchbox Assembly $27.90
 SB06002157 Blower Assembly (Includes Key No. 46, 48, 49, 53) $171.63
 SB03300495 Non-Duct Filters (2) $96.77
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
0HCK44 Cord Kit with 6' cord and plug $13.93
