BEST WM45I80SB Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

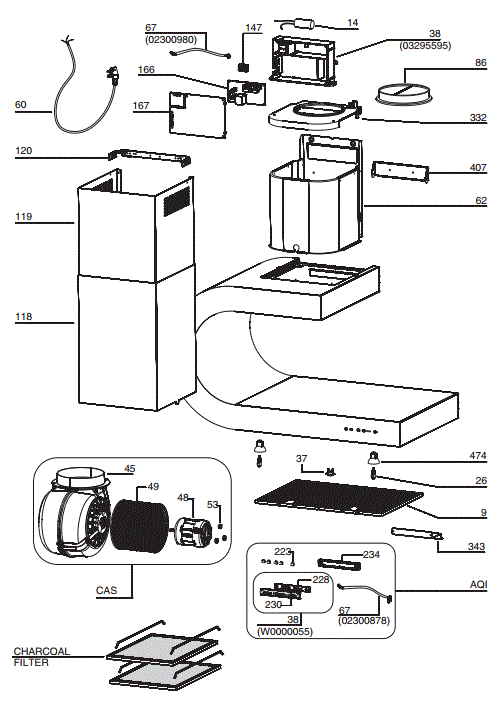

BEST WM45I80SB Range Hood Parts
BEST WM45I80SB Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9SB08087189 Grease Filter Grease Filter 8 5/8 X 11 3/4 $46.01
14SB02300233 Capacitor $10.67
26SB02300890 Lamp Bulb T4-25WATT 120V G9BASE $8.05
37SB02300804 Thermostat $14.45
48SB02310260 Motor (Clockwise) see sb0600280
49SB03295071 Blower Wheel for Fan (Clockwise) $15.28
53SB03204177 Rubber Washer $1.55
60SB02300249 Power Cord $15.75
62SB08091462 Blower Bracket $22.77
67SB02300878 Wires $6.50
86SB08088378 Discharge Collar $8.62
120SB08091367 Flue Mounting Bracket $14.62
147SBR2300132 Junction Clamp $11.07
166SB08080852 Electrical Printed Circuitboard $78.39
167SB03295596 Electrical Box Cover $4.23
332SB03295009 Cover $16.63
407SBE3343336 Blower Support Bracket $1.82
474SB02300918 Lamp Socket $39.71
998SB080810501 Fitting Set $23.27
CASSB06002080 Blower Assembly (Includes Key No. 45, 48, 49, 53) $271.40
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
0HCK44 Cord Kit with 6' cord and plug $13.93
