BEST WPP9E42SB Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

BEST WPP9E42SB Range Hood Parts

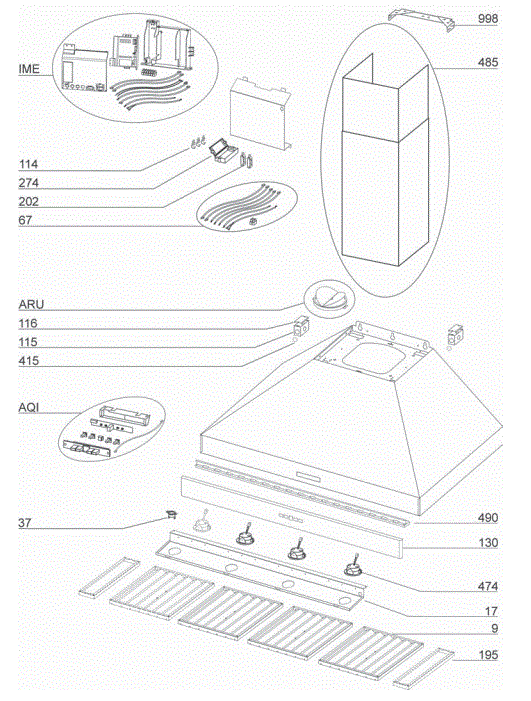

BEST WPP9E42SB Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
9 SB08087951 Grease Filters $338.40
17 SBE3351882 Light Diffuser Support 36” $52.42
17 SBE3351898 Light Diffuser Support 42” $54.52
37 SB02300804 Heat Sentry $42.30
67 SB06102602 Wires Assembly $119.38
114 SB032904990 Wire Clamp $4.74
115 SBE3350233 Wiring Box $42.30
130 SBE3405180 Front Trim 36” $122.20
130 SBE3405184 Front Trim 42” $133.04
195 SBE3351870 Filter Spacers 42” Only $58.28
274 SB03295035 Fuse Box $33.84
415 SB03292596 Fairlead $0.51
439 SB02320034 Grommet $27.26
474 SB02300918 Lamp Socket $83.66
485 SB08016372 Decorative Flue Assembly $327.12
490 SBE3405182 Grease Rails 36” $48.88
490 SBE3405185 Grease Rails 42” $76.14
506 S97019432 Bldc Driver $438.98
507 SB06102584 Calibration Button Assembly $43.24
  SB080810995 Fitting Set (Includes Key No. 998) $76.14
AQI SB06102596 Switch Box Assembly $84.60
ARU SB08092501 Duct Connector Assembly 8”
This product has been discontinued

CAS SB06002259 Blower Assembly $1,062.20
ANKWPP9 SB08999177 Non-Ducted Kit (Includes Key No. 58, 86, 122, 503) $132.41
58 SB03294170 Outlet Reduction $32.90
86 SB03292300 Outlet Flange $27.26
122 SB08093448 Riser $48.89
503 SB02011557 Expandable Duct $64.66
AFCROUND2 S99111455 Non-Duct Filter Supports $51.70
1 SB02300890 Light Bulb T4-25WATT 120V G9BASE $21.60
0 HCK44 Cord Kit with 6' cord and plug $42.30
