Broan 120 High-Capacity Wall Register Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 120 High-Capacity Wall Register Heater Parts

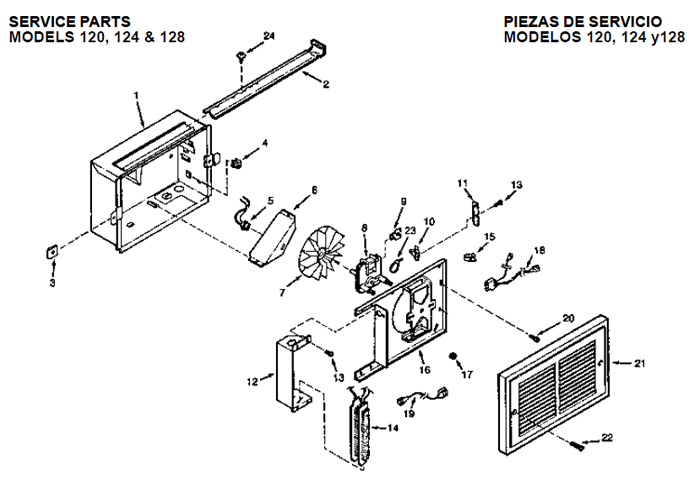

Broan 120 High-Capacity Wall Register Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
Not shown 120 Complete New 120, May Not Fit Into Old Housing (grille14 1/2 X 9 1/2 X 1)
This product has been discontinued

  S97008682 Motor Mounting Bracket & Plate $10.55
  S98003036 Housing Mounting Bracket $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 87W Line Voltage Thermostat - White $27.72
  84 Surface Mount Box $39.17
0 S97008724 Parts Bag Wall & Register HTRS $6.01
5 S97005422 Receptacle
This product has been discontinued

6 S98006975 Elec OB Side $27.26
7 S99020130 Blower Wheel 5Fin $27.26
8 S99080248 Motor F/Wall HTR Models 120, 124, 170 & 174; C- Frame, 120V, Shaft Size 1-3/8" X 7/32" $43.24
8 S99080252 Motor F/2KW 240V Wall HTR Models 128 & 178
This product has been discontinued

9 S99270735 61765-2 V-Style Tab Adapt $4.36
10 S99030194 Thermo Overload $27.26
11 S99271091 T-Stat Reset Guard F/HTR $27.26
12 S98006974 Element Mounting Bracket F/Wall HTR
This product has been discontinued

14 S99270725 Element Models 124 & 174 $70.50
14 S99270741 Heater Element 110VKW HTR Models 120 & 170 $59.22
14 S99270742 Heater Element 240KW HTR Models 128 & 178 $42.30
15 S93270619 Wire Harness Poly Clamp $0.68
19 S97008678 Overload Wire $27.26
21 S97013821 Off White Grille-Register Heater (Includes Screws) 14 1/2 X 9 1/2 X 1 $168.26
22 S99150528 Screw 8-18X1.25 OV HD WHT Sc (2 Required) $33.84
