Broan 161 Heater With 250 Watt Infrared Bulb Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 161 Heater With 250 Watt Infrared Bulb Parts

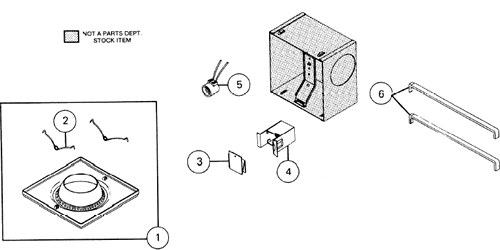

Broan 161 Heater With 250 Watt Infrared Bulb Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown 162 Complete New 161, Will Not Fit Into Old Housing (NON IC RATED) $67.75
not shown BR40 250 Watt Infrared Heat Bulb $21.72
1 S97010319 Grille With 2 Sets Of Springs, Fits All Revisions (10 1/4" x 10 1/4) $28.20
2 S06170-00 Grille Spring - 161-E,G * $27.26
2 S99140127 Grille Spring - 161-A, B,C,D * $18.00
5 S99770034 Light Socket - 161-E,G $27.26
15 S25067-00 Outlet Cover Box - 161-E,G $1.78
21 S98003036 Mounting Bracket (4 Required.) $27.26
22 S98007763 Slide Bracket Channel (2 Required) $3.78
23 S25064-000 Outlet Box 161-E,G (1 left) $7.12
